Cover, Header - Installation

INSTALLATION

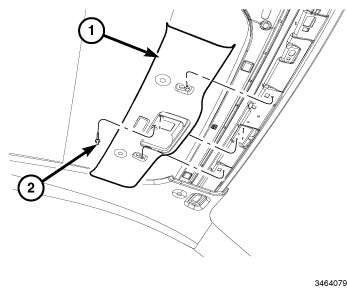

1. Position the front header cover (1).
2. Hand tap the front header cover (1) to engage the retaining tabs.
3. Install the rivet (2) located in the dome lamp cavity securing the front header cover (1) to the roof header.





4. Install the dome lamp and power top switch, Full Open Retractable Roof Switch - Installation.
5. Install the visor support and visor (2), Visor Support - Installation ,Visor - Installation.
