Shifter Bezel - Removal

REMOVAL

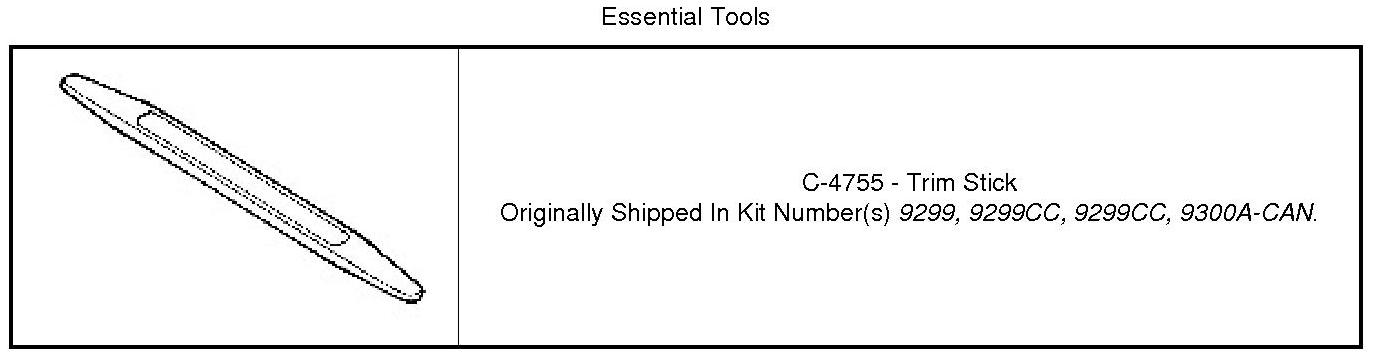

Special Tools:










1. Disconnect the negative battery cable.

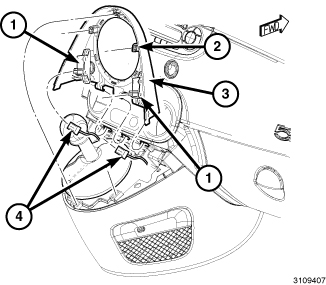

2. Using trim stick C-4755 or equivalent, pry the shifter bezel (3) to disengage it's retaining tabs (2).
3. Vehicle equipped with manual transmissions, detach the shifter boot from the shifter bezel (3).
4. Disconnect the window switches (1) from their harnesses (4) and remove the shifter bezel (3).
