B-Pillar Trim Panel - Removal

REMOVAL

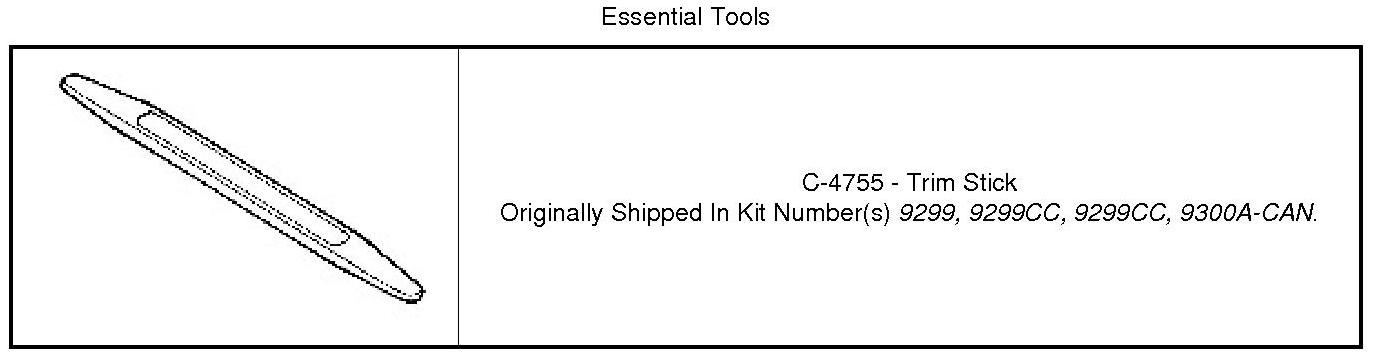

Special Tools:










1. Remove the seat belt anchor at the rear seat,Seat Belt Retractor - Removal.
2. Using trim stick C-4755 or equivalent, disengage the B-pillar trim panel retaining tabs/clips located at the bottom and upper rear areas.
3. Pull downward on the B-pillar trim panel.
4. Remove the B-pillar trim panel (1) and feed the seat belt through the opening.
