A-Pillar Trim Panel - Installation

INSTALLATION

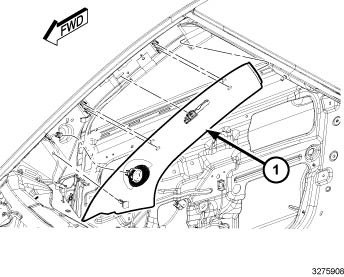

1. Insert the A-Pillar trim (1) top channel into the headliner.
2. If equipped, connect the A-pillar speaker.
3. Attach the A-pillar trim's (1) tether.
4. Align and position the trim panel's (1) retaining tabs/clips to the A-pillar.
5. Hand tap to engage the retaining clips/tabs.
6. Install the instrument panel cover, Instrument Panel Cover - Installation.
