Rear Quarter Trim Panel - Removal

REMOVAL

Special Tools:










1. Remove the cowl trim panel, Cowl Trim Panel - Removal.
2. Remove the B-pillar trim panel, B-Pillar Trim Panel - Removal.
3. Remove the C-pillar trim panel, C-Pillar Trim Panel - Removal.
4. Remove the liftgate scuff plate.
5. Remove the cargo cover.
6. Remove the seat belt anchor cover (2).
7. Remove the rear quarter trim retaining screws (3).
8. If equipped, detach the cargo lamp from the quarter trim panel (1).

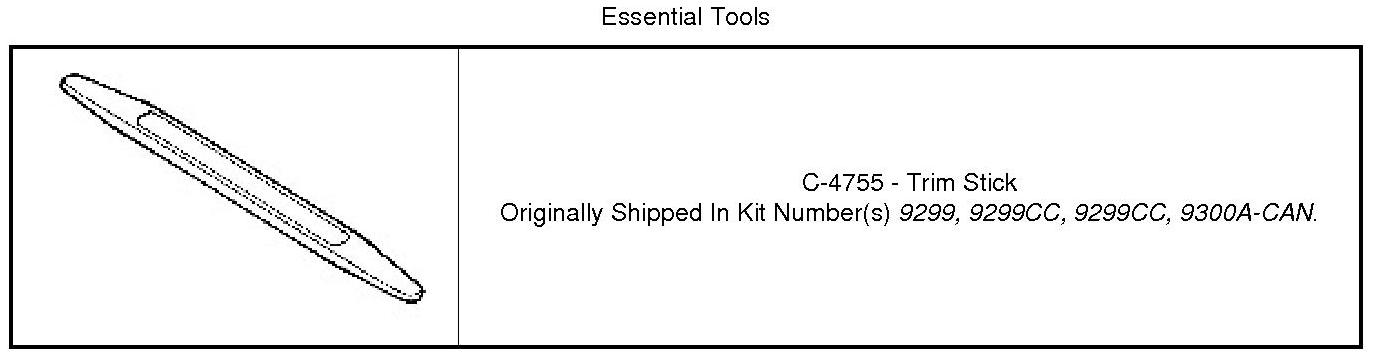

9. Using trim stick C-4755 or equivalent, disengage the trim panel retaining tabs.
10. Remove the quarter trim panel (1).
