Cowl Trim Panel - Installation

INSTALLATION

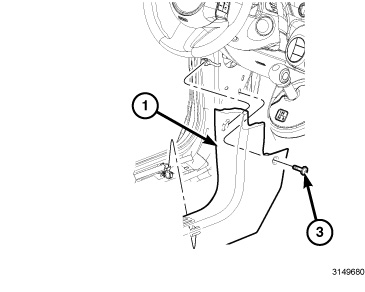

1. Position the cowl/scuff panel (1) into the vehicle, engage the cowl/scuff panel (1) upper retaining clip by pushing rearward.
2. Install the front screw (3) to the cowl/scuff panel (1). Tighten the screw securely.
3. Repeat steps for the opposite side.

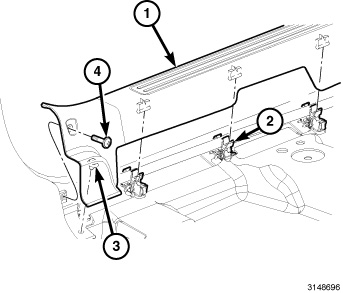

4. Starting at the front and working rearward, hand tap to engage the retaining clips (2, 3).
5. Install the screw (4) located in the rear of the cowl/scuff panel (1). Tighten the screw securely.
6. Re-install the weatherstrip to the lower half of the door.
