Cargo Floor Cover - Removal
Cargo Floor Cover - Removal

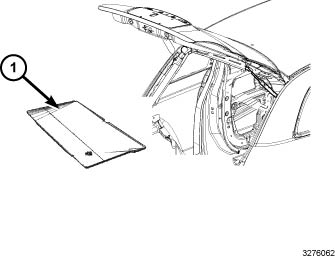

REMOVAL
1.
Open the liftgate.
2.
Pull outward at the rear of cargo load floor to remove.
