Rear Shelf Panel - Removal
Rear Shelf Panel - Removal
REMOVAL
1.
Open the liftgate.
2.

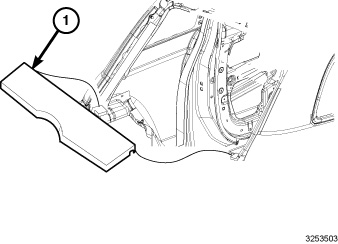

Lift the
rear shelf
panel (1) up and out of the guides.
