Headliner, Side Rail - Removal

REMOVAL

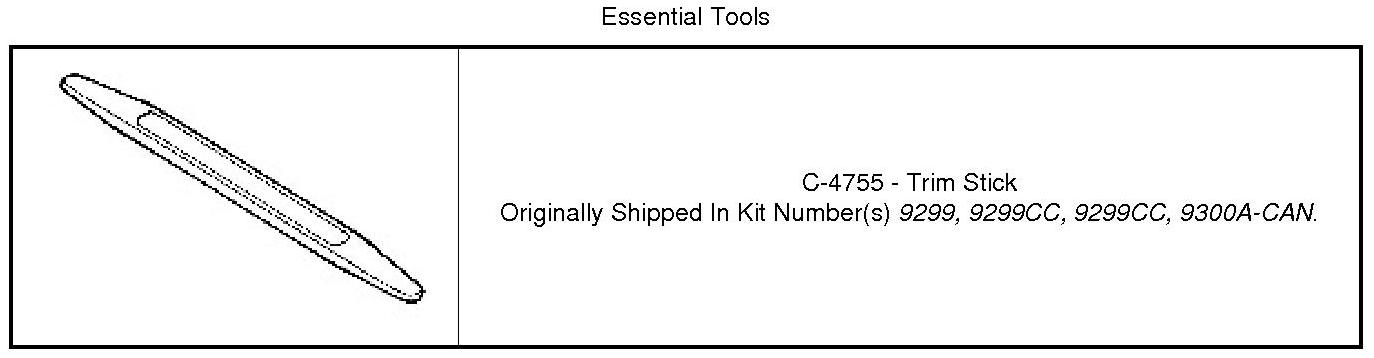

Special Tools:










1. Remove the A-pillar trim panel, A-Pillar Trim Panel - Removal.
2. Remove the front header cover, Cover, Header - Removal.
3. Remove the grab handle, Grab Handle - Removal
4. Remove the B-pillar upper trim panel, B-Pillar Trim Panel - Removal.
5. Twist the coat hook (1) counter clockwise to the "9 o'clock" position and pull straight out to remove.
6. Remove the C-pillar trim panel, C-Pillar Trim Panel - Removal.





7. Using (C-4755) or equivalent, pry the headliner side rail (2) away and reposition.
8. Remove the fastener (1) securing the tether to the airbag.
9. Remove the headliner side rail (2).
