Headliner, Side Rail - Installation

INSTALLATION

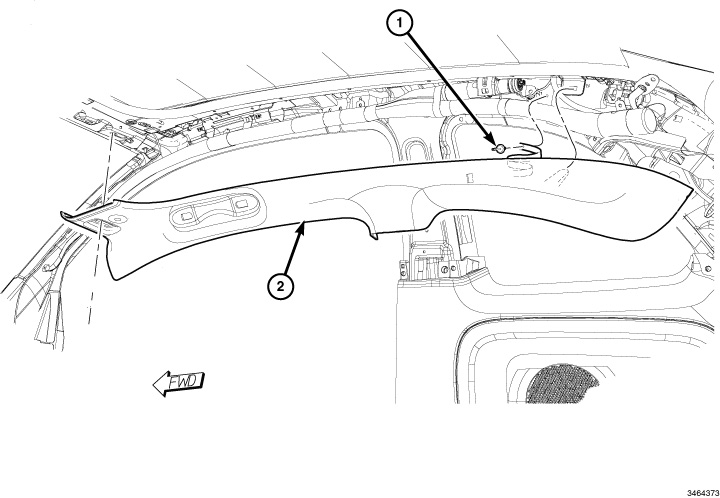

1. Position the headliner side rail (2).
2. Install the fastener (1) securing the tether to the airbag.
3. Hand tap the headliner side rail to engage the retaining clips.

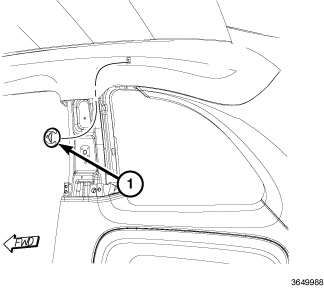

4. Posittion the coat hook (1) in the "9 o'clock" position, push in and twist clockwise to the "12 o'clock" position.
5. Install the C-pillar trim panel, C-Pillar Trim Panel - Installation.
6. Install the B-pillar upper trim panel, B-Pillar Trim Panel - Installation.
7. Install the front header cover, Cover, Header - Installation.
8. Install the grab handle, Grab Handle - Installation.
9. Install the A-pillar trim panel, A-Pillar Trim Panel - Installation.
