Front Door





FRONT DOOR





1. Disconnect the negative battery cable.
2. Remove the door trim panel Front Door Trim Panel - Removal.

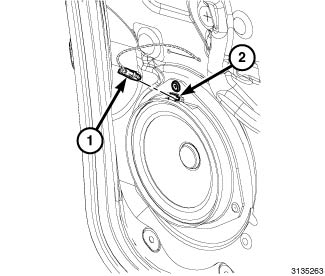

3. Disconnect the speaker electrical connector (1) from the speaker (2).

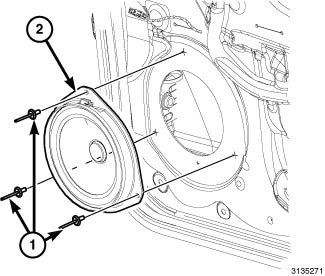

4. Drill out the speaker rivets (1).
5. Remove the front door speaker (2).
