Gauge Pack, Instrument Cluster: Description: Description: Notes

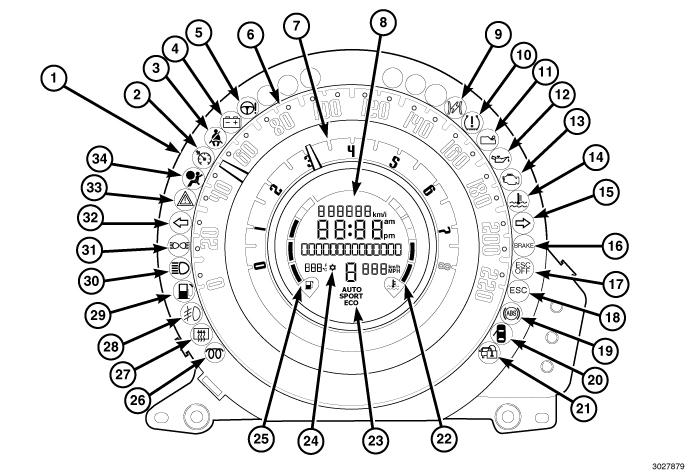

The instrument cluster assembly houses 2 analog gauges, and 2 digital gauges that are all controlled by the Instrument panel cluster (IPC), and standard on all models. The gauge graphics are white and gray against a black field except for the red graduations at the high end of the gauge scale on the tachometer to designate the red line area; making them clearly visible within the instrument cluster in daylight. When illuminated by the cluster illumination lighting, the white and gray text and graphics as well as the red graphics still appear the same, the red gauge needles have internal optical illumination. Gauge illumination is provided by dimmer controlled Light Emitting Diode (LED) units soldered onto the IPC circuit board. The Gauge set and indicators shown in illustration below are an integrated part of the IPC, therefore are only serviced as a unit with the IPC. The cluster lens and hood unit are the only components of the instrument cluster assembly that can be serviced separately
The instrument cluster includes the following analog gauges:
- Engine Temperature Gauge (22)
- Fuel Gauge (25)
- Speedometer (6)
- Tachometer (7)
