Seat Belt-PRETENSIONER (Anchor)-Passenger
Harness-Family: Body_Rear
Color: GREEN
Gender: FEMALE
Part Number: FA00AAA93314
Part Description: Not Available

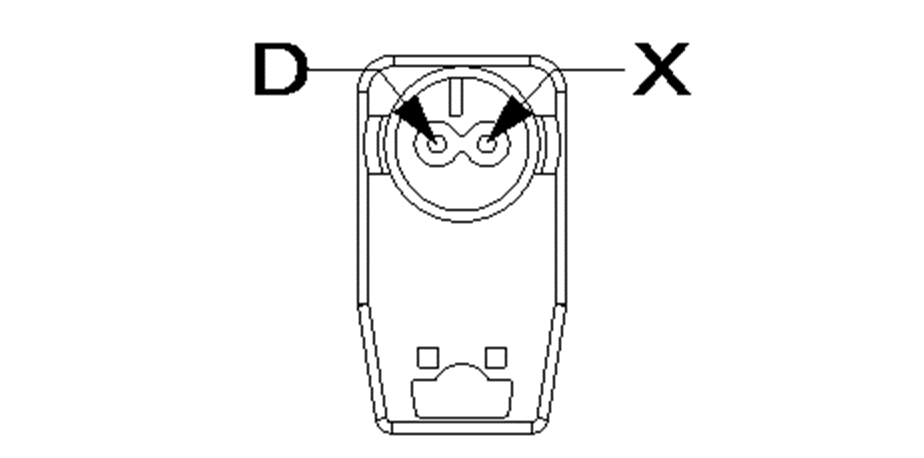

Connector No: D2804A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: ~~
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | R504 | WT | 20 | PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 | CABRIO |
| 2 | R506 | WT | 20 | PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 | CABRIO |
