Starter C1

Harness-Family: Battery_Positive

Color: NA

Gender: FEMALE

Part Number: 1/06050/54

Part Description: Not Available

Connector No: D6637A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Starter C1 Connector End View

GCWD1084859

Courtesy of CHRYSLER

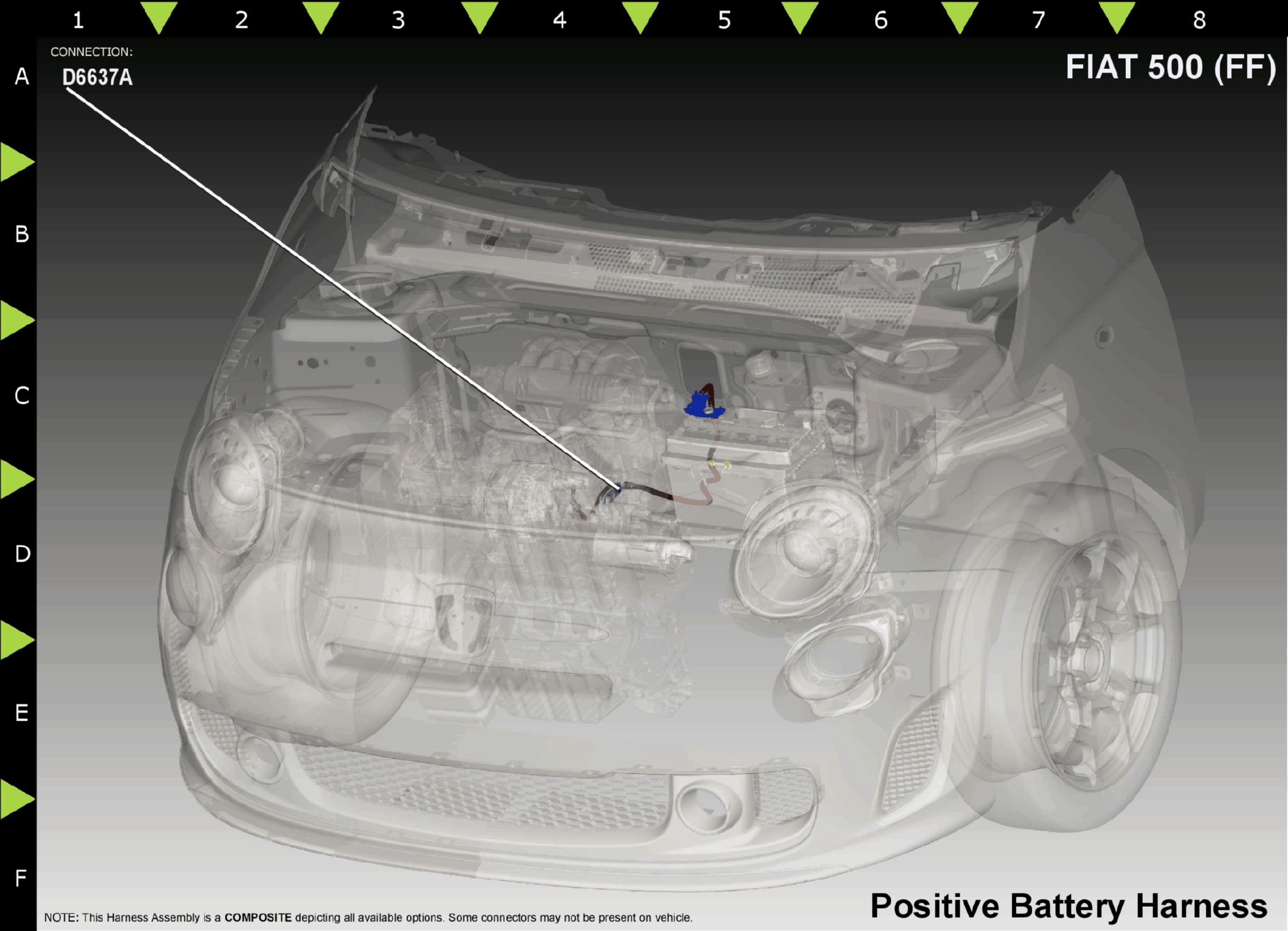

Fig 2: Starter C1 Connector Location View

GCWD1187792

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A8	RD	1	B(+)	ABARTH DOUBLE CRIMP
1	A802	RD	1	B(+)	ABARTH DOUBLE CRIMP
