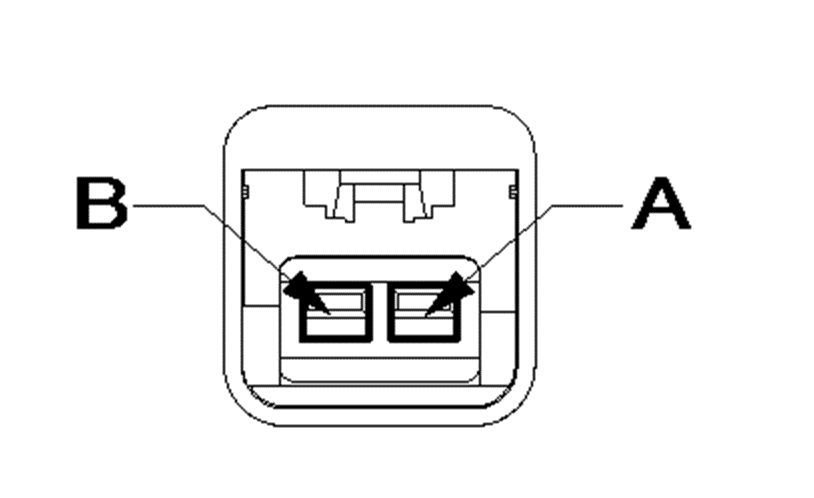

Connector End Views & Electrical Component Locations (2 Of 3): Speaker-Subwoofer
Harness-Family: Body_Rear
Color: BLACK
Gender: FEMALE
Part Number: FA00AAE31343
Part Description: Not Available
Connector No: D5920
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: ~~
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| A | X300 | WT | 12 | AMPLIFIED SUBWOOFER 1 (+) | N/A |
| B | X390 | WT | 12 | AMPLIFIED SUBWOOFER 1 (-) | N/A |
