Solenoid-Variable Valve Timing-Intake 4

Harness-Family: Engine

Color: ~~

Gender: FEMALE

Part Number: AGV67596

Part Description: Not Available

Connector No: D2770

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

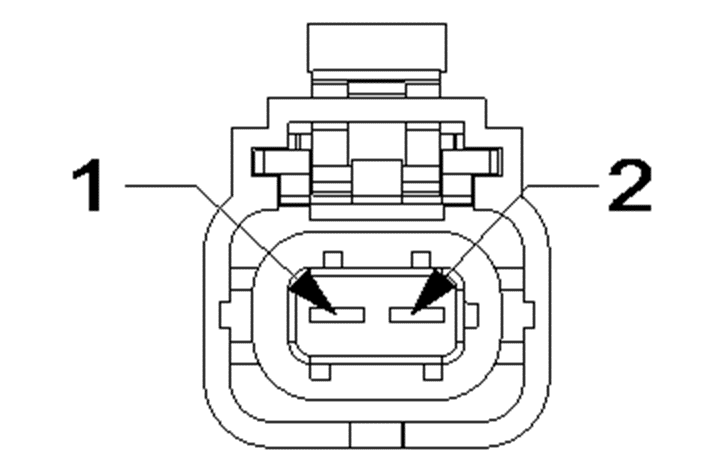

Fig 1: Solenoid-Variable Valve Timing-Intake 4 Connector End View
GCWD1090814Courtesy of CHRYSLER

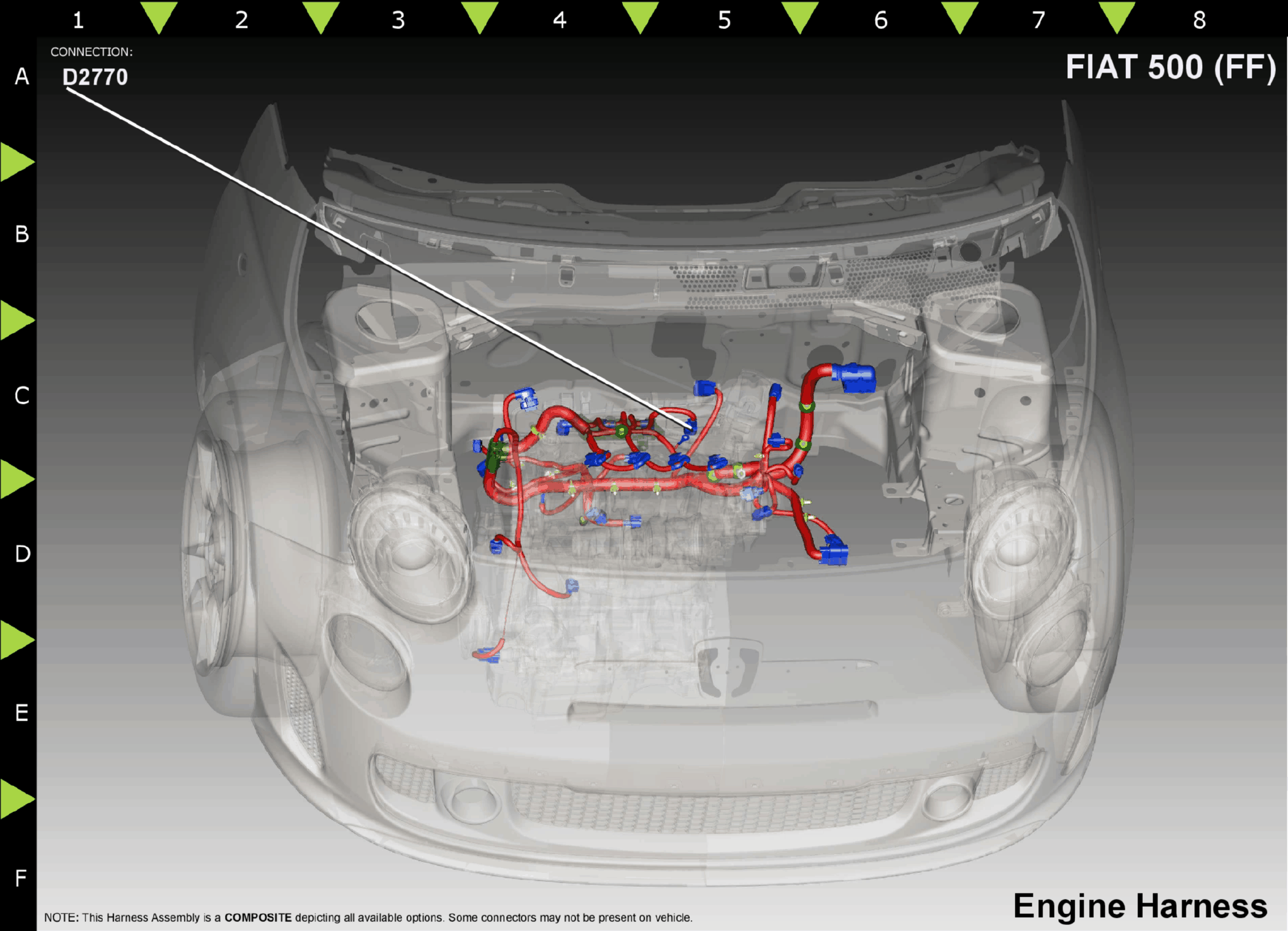

Fig 2: Solenoid-Variable Valve Timing-Intake 4 Connector Location View
GCWD1187762Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 N38 OR 14 VVA SOLENOID 4 SIGNAL 16V
2 N39 BR 14 VVA SOLENOID 4 RETURN N/A
