Solenoid-Variable Valve Timing-Intake 2

Harness-Family: Engine

Color: ~~

Gender: FEMALE

Part Number: AGV67596

Part Description: Not Available

Connector No: D2484

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Solenoid-Variable Valve Timing-Intake 2 Connector End View
GCWD1090814Courtesy of CHRYSLER

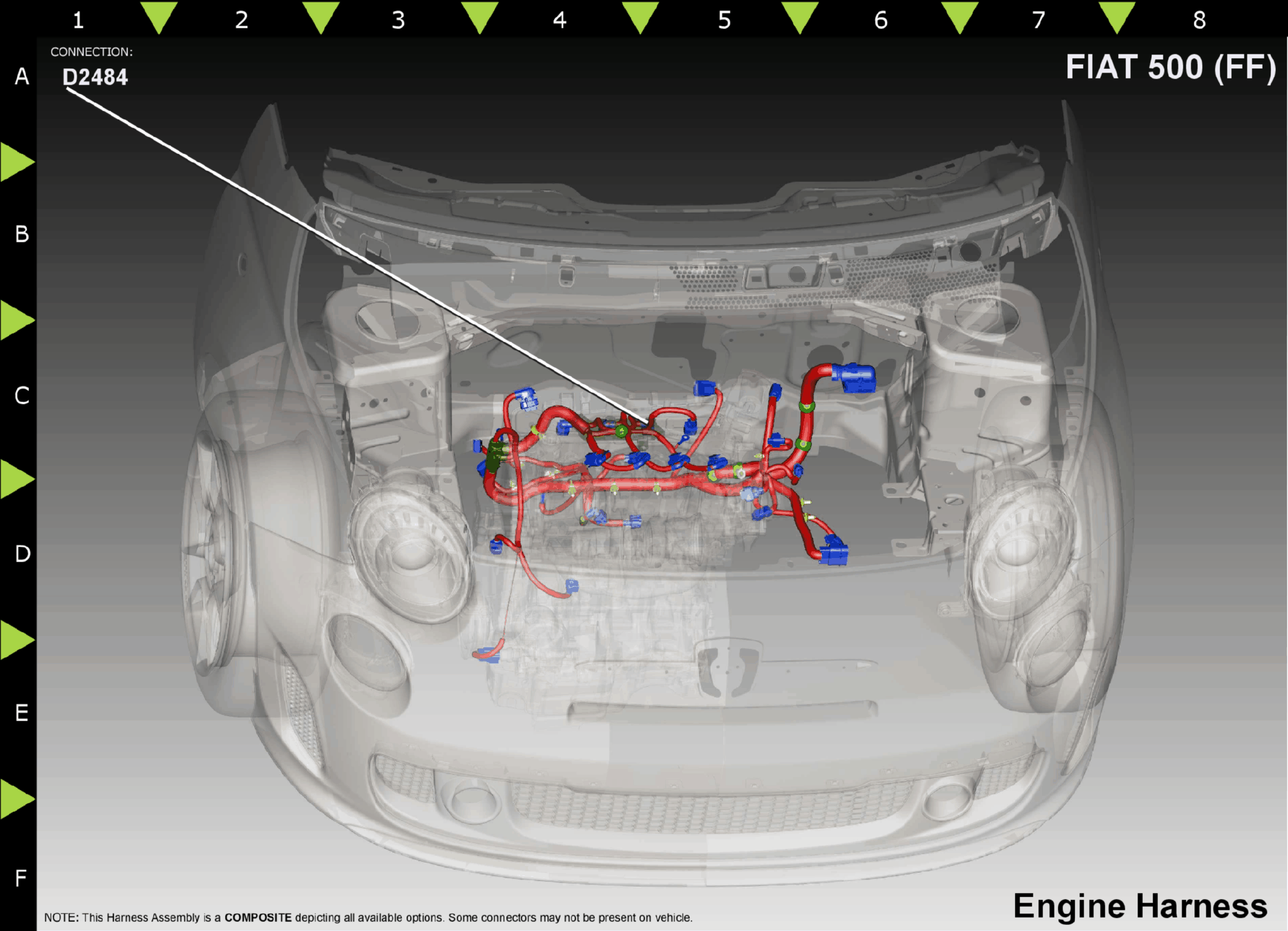

Fig 2: Solenoid-Variable Valve Timing-Intake 2 Connector Location View
GCWD1187811Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 N34 OR 14 VVA SOLENOID 2 SIGNAL 16V
2 N35 BR 14 VVA SOLENOID 2 RETURN N/A
