Solenoid-Variable Valve Timing-Intake 1

Harness-Family: Engine

Color: ~~

Gender: FEMALE

Part Number: AGV67596

Part Description: Not Available

Connector No: D64

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Solenoid-Variable Valve Timing-Intake 1 Connector End View
GCWD1090814Courtesy of CHRYSLER

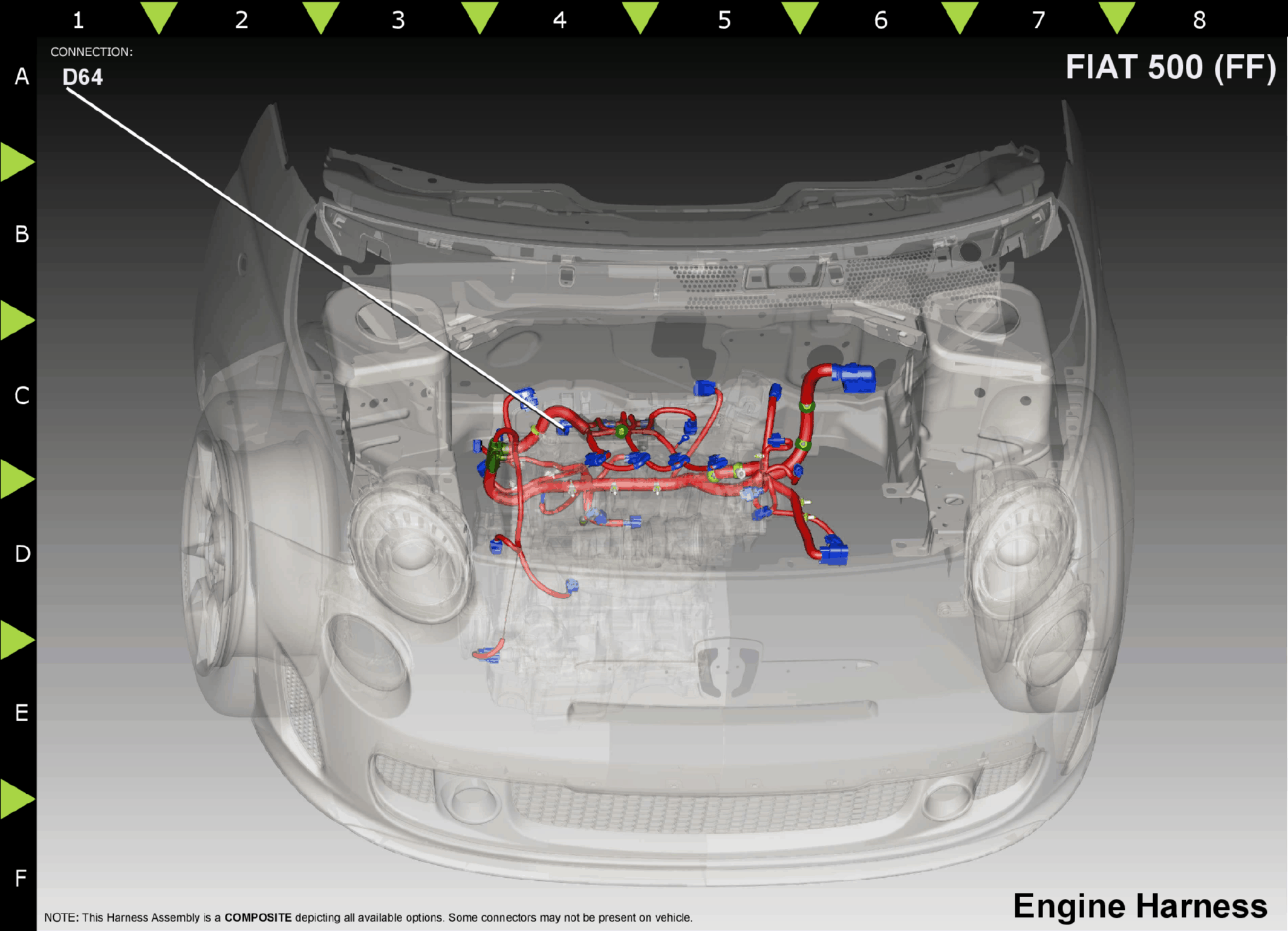

Fig 2: Solenoid-Variable Valve Timing-Intake 1 Connector Location View
GCWD1187767Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 N32 OR 14 VVA SOLENOID 1 SIGNAL N/A
2 N33 BK 14 VVA SOLENOID 1 RETURN 16V
