Sensor-Seat Track Position-Driver

Harness-Family: Seat_Driver

Color: GRAY

Gender: FEMALE

Part Number: 1438426-3

Part Description: CONNECTOR ASSEMBLY

Connector No: D1581

Option: Standard

Repair Kit Part Number: 68057307AA

Cavity Count: 2

Fig 1: Sensor-Seat Track Position-Driver Connector End View
GCWD1016852Courtesy of CHRYSLER

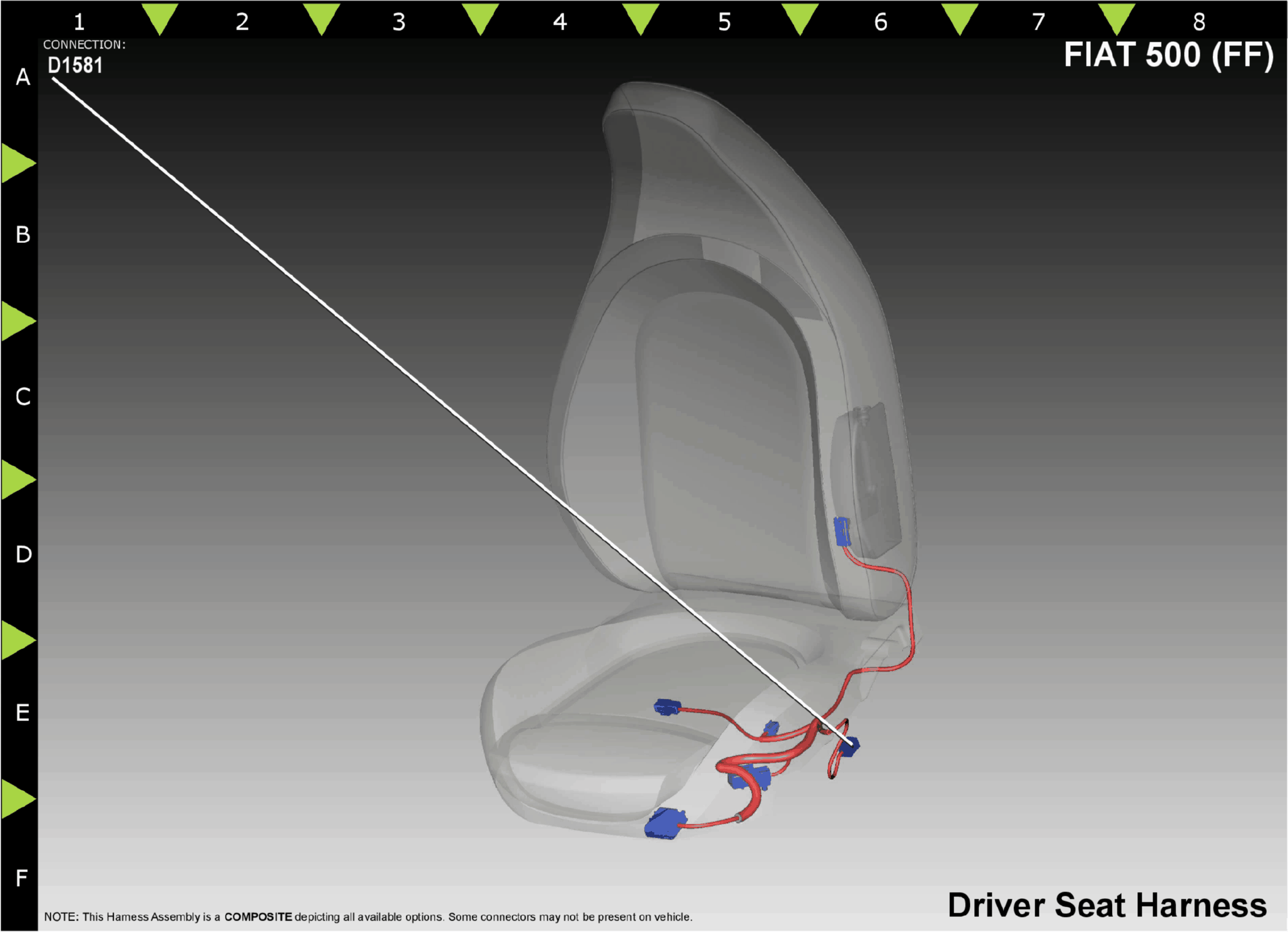

Fig 2: Sensor-Seat Track Position-Driver Connector Location View
GCWD1187525Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R261 RD 20 DRIVER SEAT POSITION SENSOR DATA N/A
2 Z927 WT 20 GROUND N/A
