Sensor-Park Assist 8
Harness-Family: Fascia_Rear
Color: BLACK
Gender: FEMALE
Part Number: 10865914
Part Description: Not Available

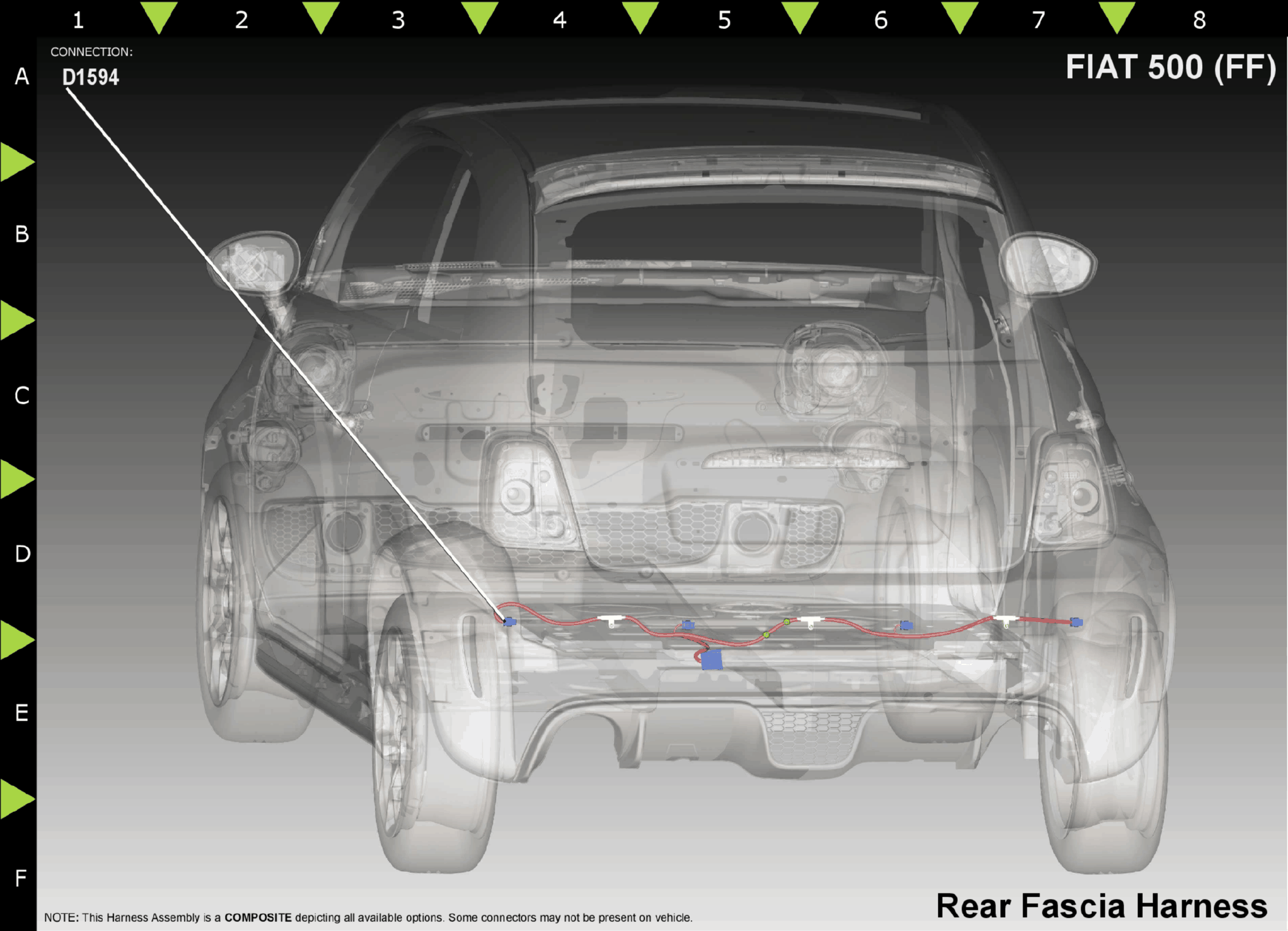

Connector No: D1594
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 3
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | X700 | OR | 22 | REAR PARK ASSIST SENSOR SUPPLY | N/A |
| 2 | D701 | BR | 22 | PARK ASSIST SIGNAL 8 | N/A |
| 3 | X750 | BK | 22 | REAR PARK ASSIST SENSOR GROUND | N/A |
