Sensor-Oxygen 1/1

Harness-Family: Body_Front

Color:

Gender: FEMALE

Part Number: AHY06543

Part Description: Not Available

Connector No: D1539

Option: 16V

Repair Kit Part Number: Not Available

Cavity Count:

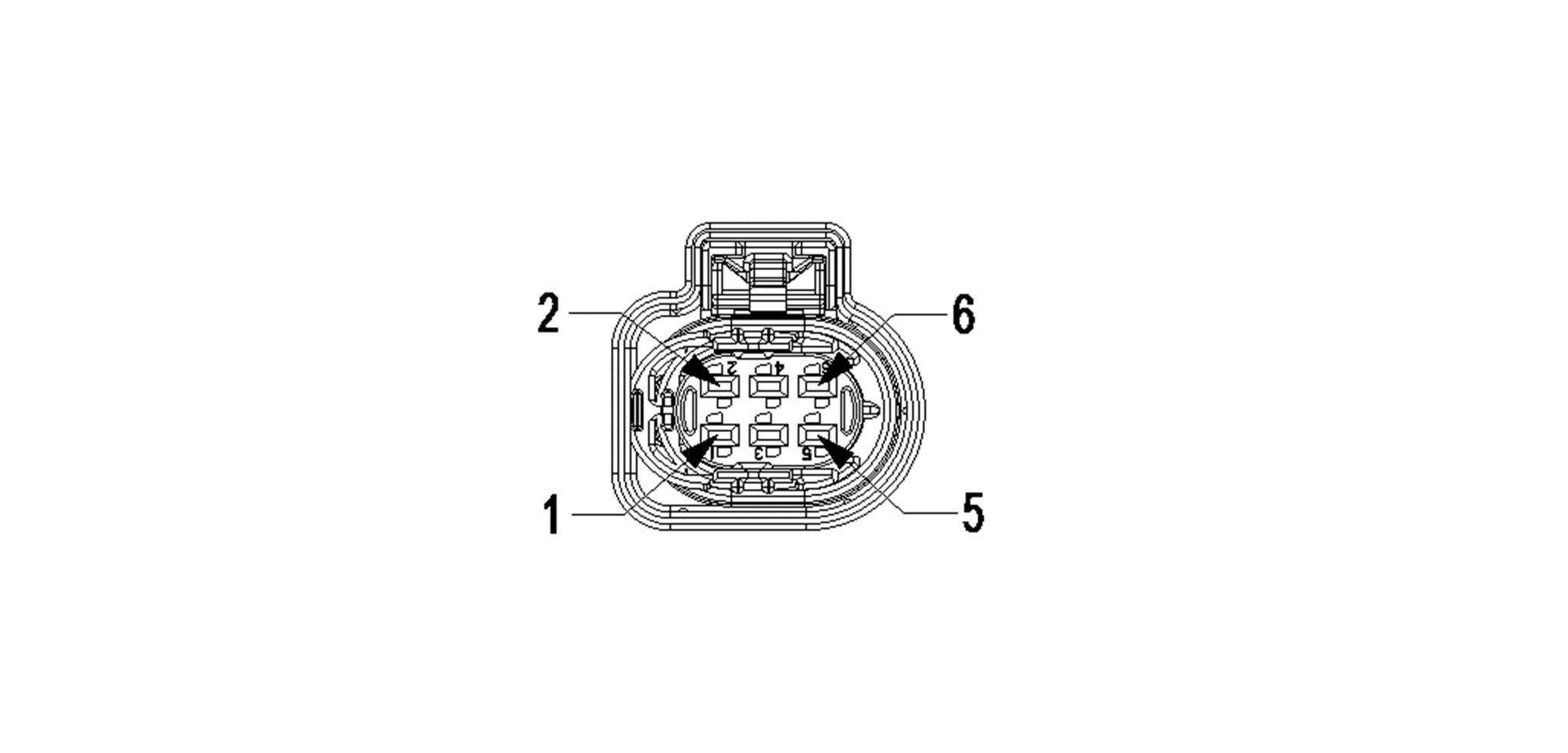

Fig 1: Sensor-Oxygen 1/1 Connector End View

GCWD1088010

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K103	BR	20	O2 1/1 PUMP CELL CURRENT TRIM	N/A
1	K41	BR	20	O2 1/1 SIGNAL	N/A
2	K89	GY	20	O2 1/1 POSITIVE CURRENT CONTROL	N/A
2	K902	GY	20	O2 RETURN (UPSTREAM)	N/A
3	K79	BR	20	O2 1/1 HEATER CONTROL	N/A
3	K99	BR	20	O2 1/1 HEATER CONTROL	N/A
4	K41	BR	20	O2 1/1 SIGNAL	N/A
4	F344	DB	20	FUSED ASD RELAY OUTPUT	N/A
5	F344	DB	20	FUSED ASD RELAY OUTPUT	N/A
6	K902	WT	20	O2 RETURN (UPSTREAM)	N/A
