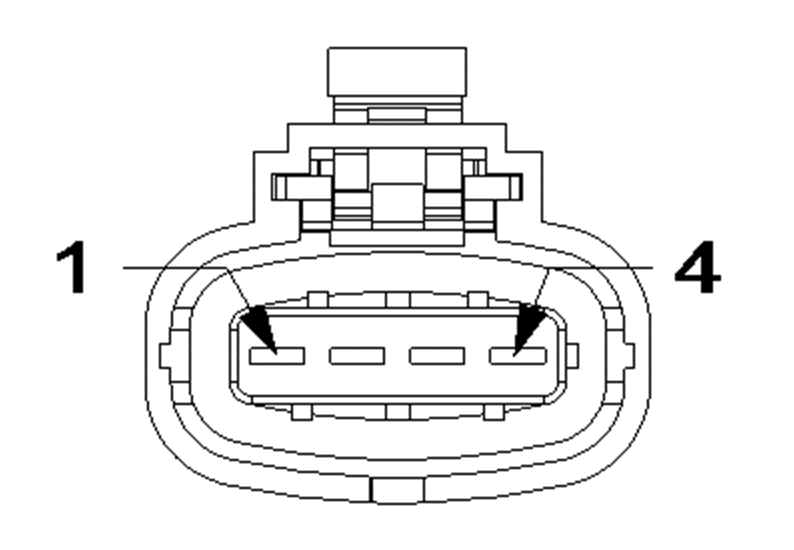

Sensor-Manifold Absolute Pressure
Harness-Family: Engine_16V
Color: YELLOW
Gender: FEMALE
Part Number: AHY81293
Part Description: Not Available
Connector No: D1537
Option: 16V
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K900 | BR | 20 | SENSOR GROUND | N/A |
| 2 | K21 | WT | 20 | IAT SIGNAL | N/A |
| 3 | F855 | WT | 20 | 5 VOLT SUPPLY | N/A |
| 3 | F856 | WT | 20 | 5 VOLT SUPPLY | N/A |
| 4 | K1 | WT | 20 | MAP SIGNAL | N/A |
