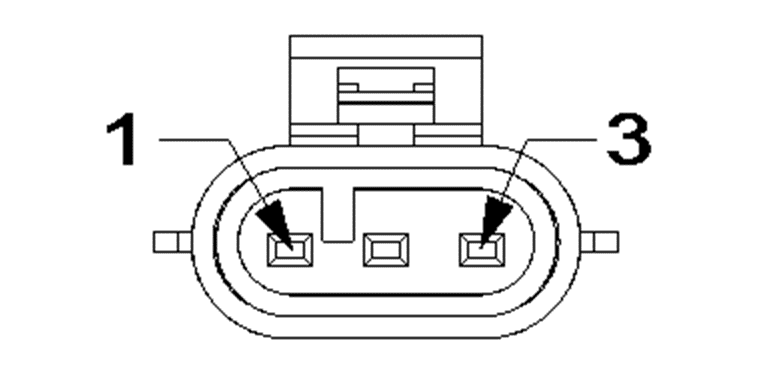

Sensor-Fuel Tank Pressure
Harness-Family: Body_Rear
Color: BLACK
Gender: FEMALE
Part Number: FA00AAA60490
Part Description: Not Available
Connector No: D2487
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K917 | WT | 22 | SENSOR GROUND | N/A |
| 2 | N7 | DG | 22 | FUEL TANK PRESSURE SIGNAL | N/A |
| 3 | K859 | RD | 22 | 5 VOLT SUPPLY | N/A |
