Sensor-Evaporator Temperature

Harness-Family: HVAC_ATC

Color: BLACK

Gender: FEMALE

Part Number: K086

Part Description: Not Available

Connector No: D1500

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

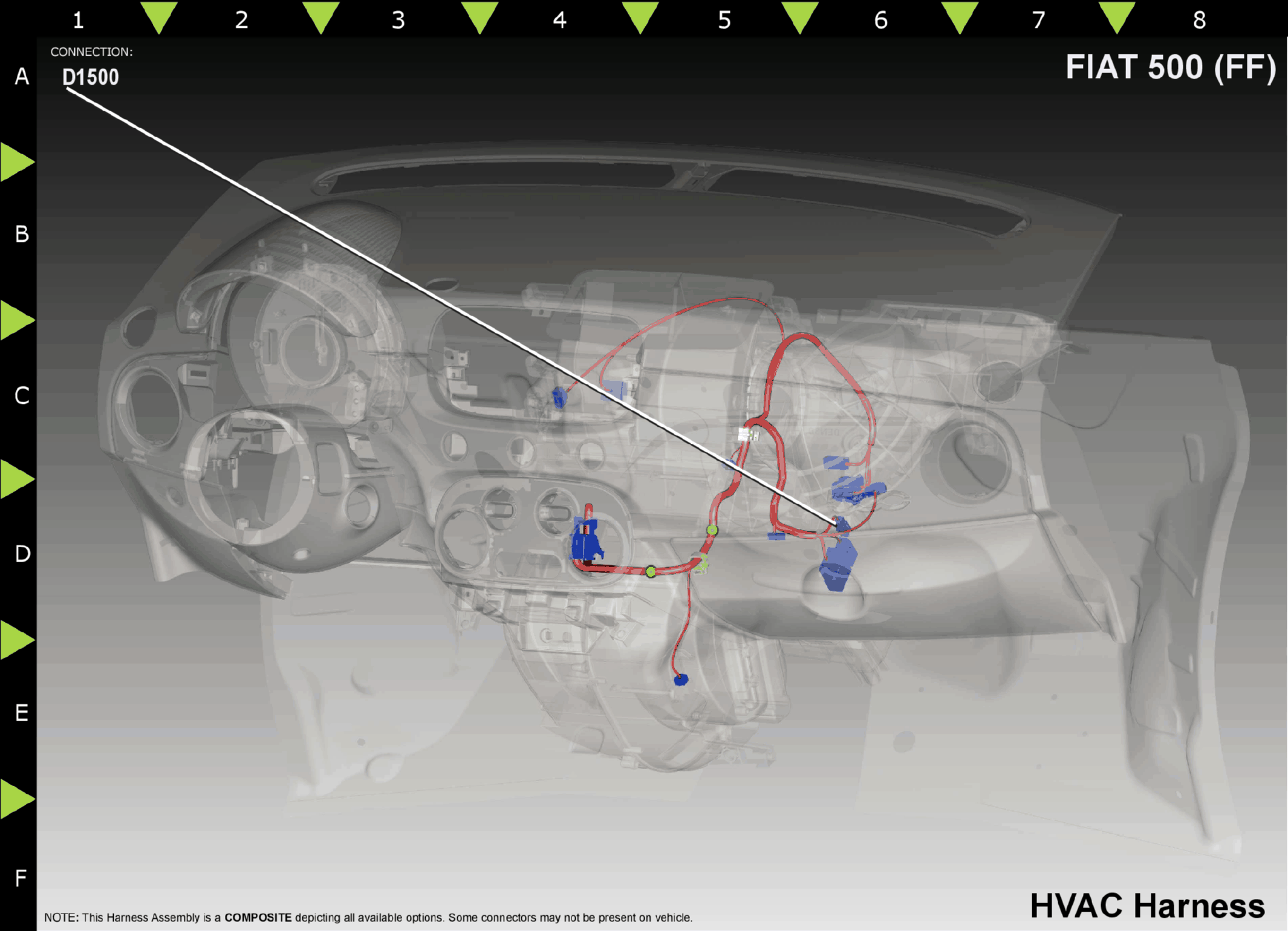

Fig 1: Sensor-Evaporator Temperature Connector Location View
GCWD1187601Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C121 BK 22 SENSOR GROUND ATC
2 C21 LB 22 EVAPORATOR TEMPERATURE SENSOR SIGNAL ATC
