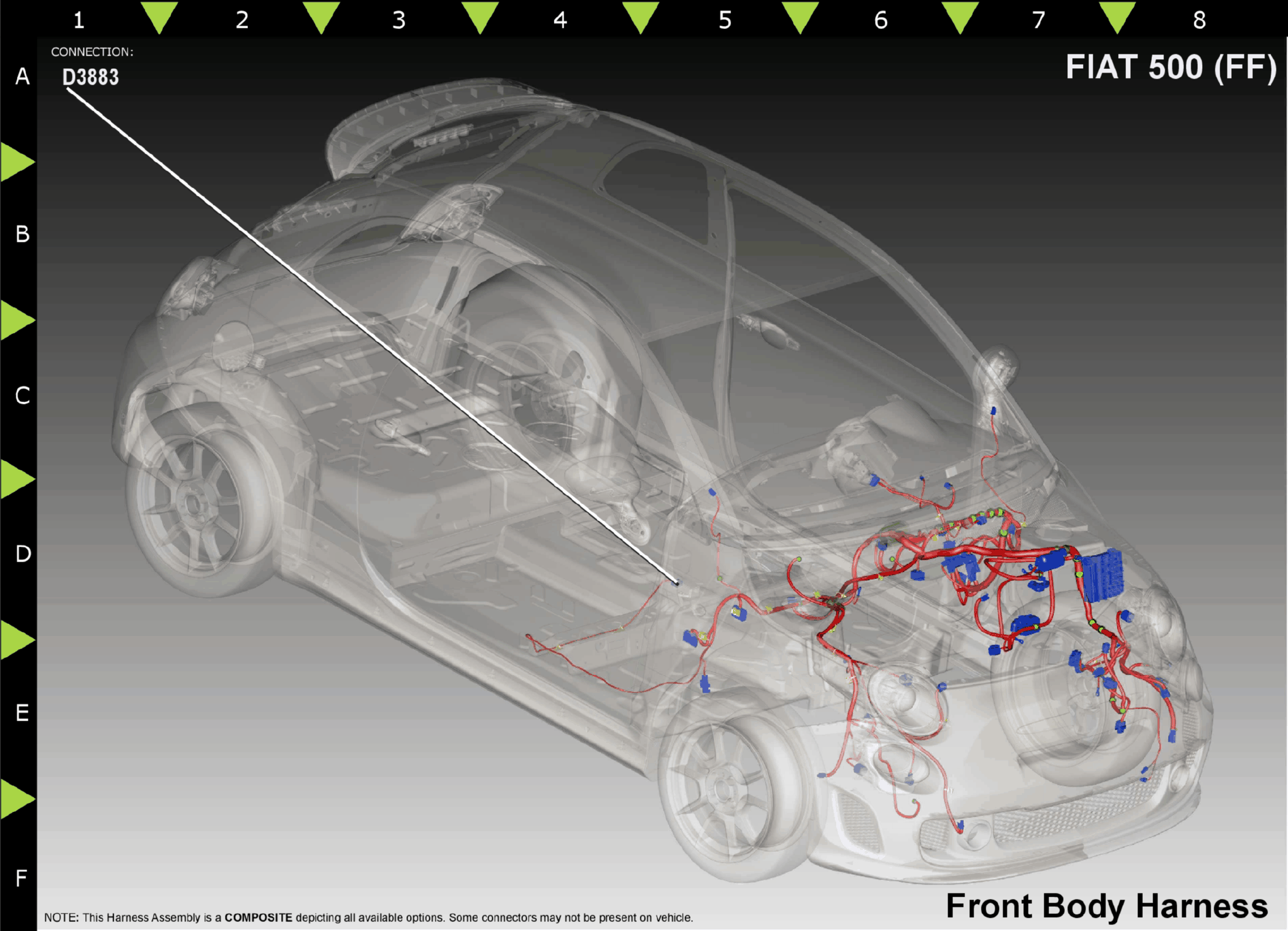

Connector End Views & Electrical Component Locations (2 Of 3): Sensor-Dynamics
Harness-Family: Body_Front
Color: BLACK
Gender: FEMALE
Part Number: AGV29461
Part Description: Not Available
Connector No: D3883
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 6
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | G4 | OR | 22 | DYNAMICS SENSOR SUPPLY | N/A |
| 2 | D64 | BR | 22 | CAN C (-) | N/A |
| 3 | D64 | BR | 22 | CAN C (-) | N/A |
| 4 | D65 | DG | 22 | CAN C (+) | N/A |
| 5 | D65 | DG | 22 | CAN C (+) | N/A |
| 6 | Z910 | BK | 22 | GROUND | N/A |
