Connector End Views & Electrical Component Locations (2 Of 3): S302

Harness-Family: Fascia_Rear

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: S302 Connector End View

Courtesy of CHRYSLER

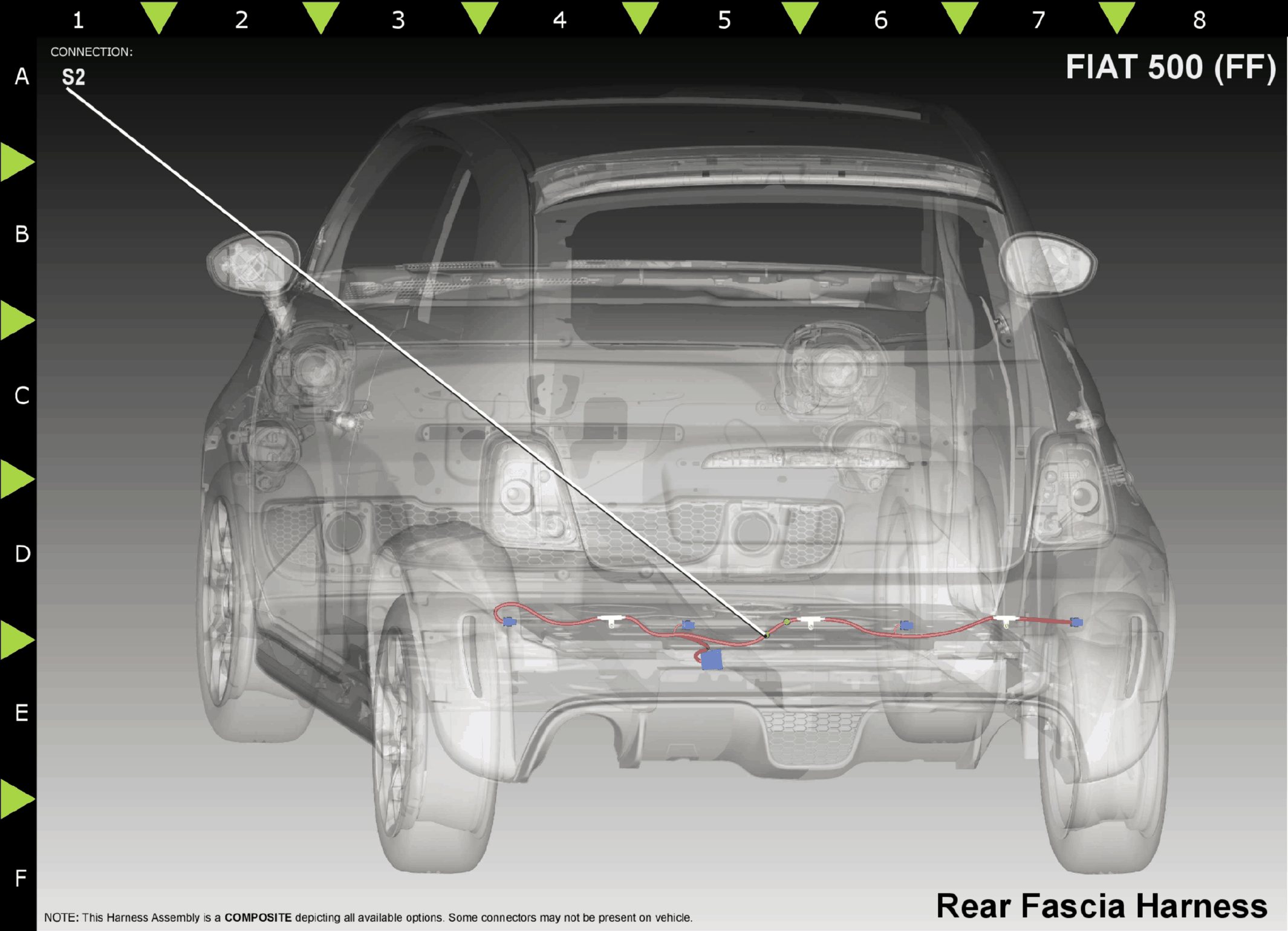

Fig 2: S302 Connector Location View

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X750	BK	22	REAR PARK ASSIST SENSOR GROUND	N/A
