Connector End Views & Electrical Component Locations (2 Of 3): S1

Harness-Family: HVAC_ATC

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S1

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S1 Connector End View
GCWD1006457Courtesy of CHRYSLER

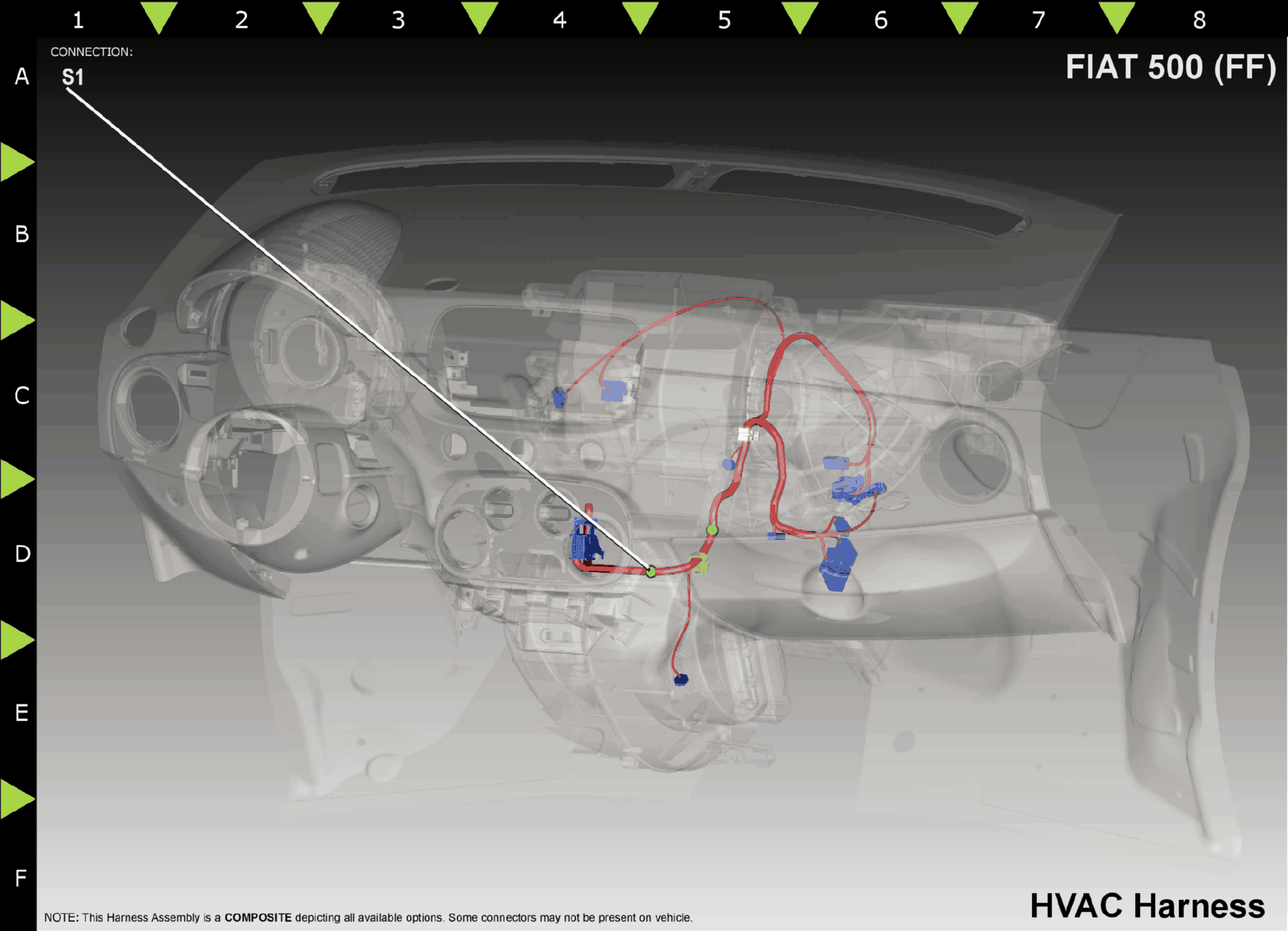

Fig 2: S1 Connector Location View
GCWD1187589Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C121 BK 22 SENSOR GROUND N/A
1 F343 DB 14 FUSED ASD RELAY OUTPUT N/A
2 F343 GY 18 FUSED ASD RELAY OUTPUT N/A
3 F343 GY 18 FUSED ASD RELAY OUTPUT N/A
4 F343 GY 18 FUSED ASD RELAY OUTPUT N/A
5 F343 GY 18 FUSED ASD RELAY OUTPUT N/A
