Switch-Seat Belt Buckle-Passenger

Harness-Family: Seat_Pass

Color: LIGHT GRAY

Gender: MALE

Part Number: 7282-6443-40

Part Description: 2P KAIZEN YESC 1.5MM MALE SUB ASSEMBLY

Connector No: D2283

Option: Standard

Repair Kit Part Number: 68065022AA

Cavity Count: 2

Fig 1: Switch-Seat Belt Buckle-Passenger Connector End View
GCWD1006518Courtesy of CHRYSLER

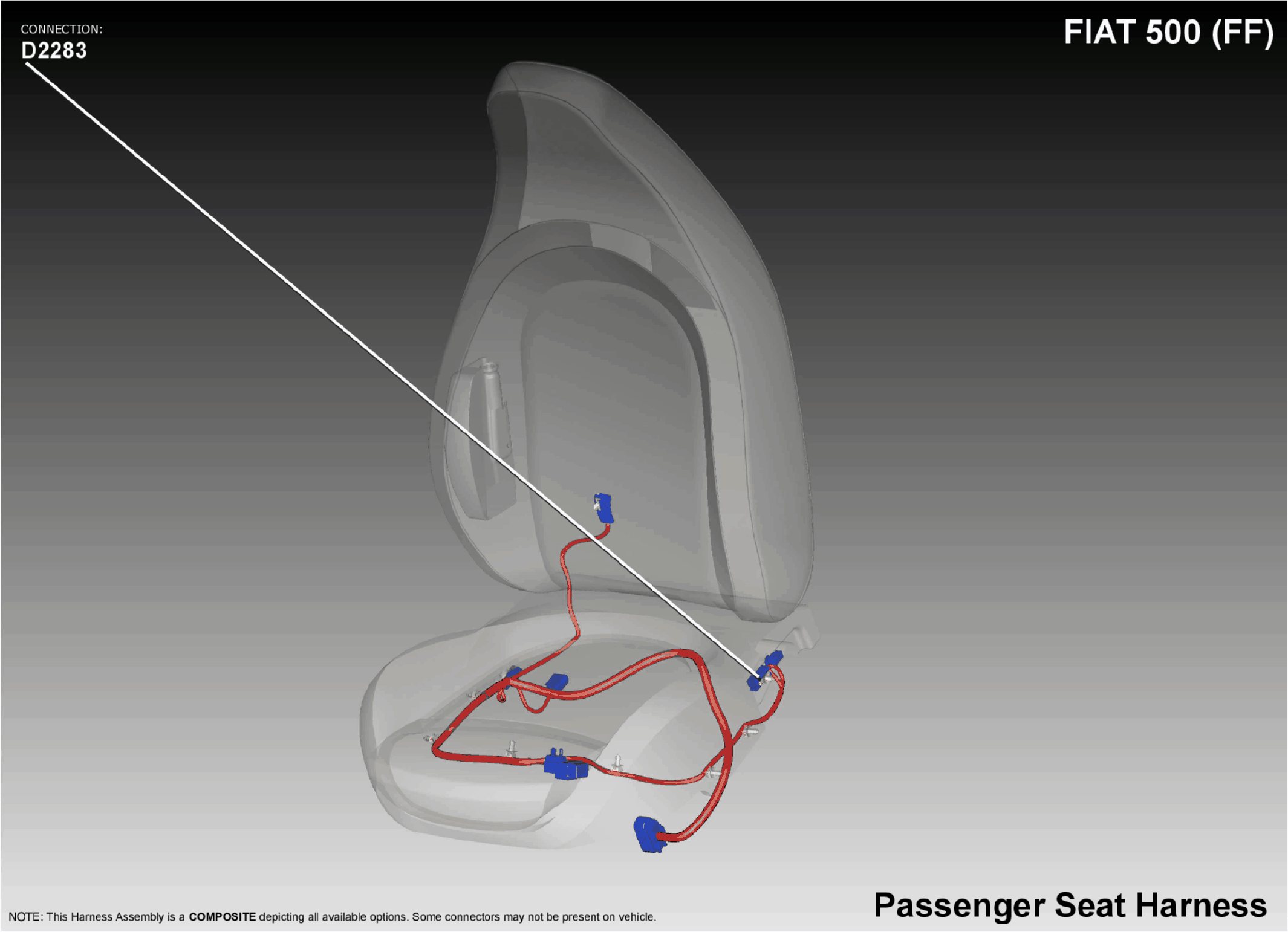

Fig 2: Switch-Seat Belt Buckle-Passenger Connector Location View
GCWD1187734Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R58 WT 20 PASSENGER SEAT BELT SWITCH SENSE N/A
2 Z927 YL 20 GROUND N/A
