Switch-Seat Belt Buckle-Driver

Harness-Family: Seat_Driver

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6443-40

Part Description: 2P KAIZEN YESC 1.5MM Female SUB ASSEMBLY

Connector No: D2281

Option: Standard

Repair Kit Part Number: 68065023AA

Cavity Count: 2

Fig 1: Switch-Seat Belt Buckle-Driver Connector End View
GCWD1006321Courtesy of CHRYSLER

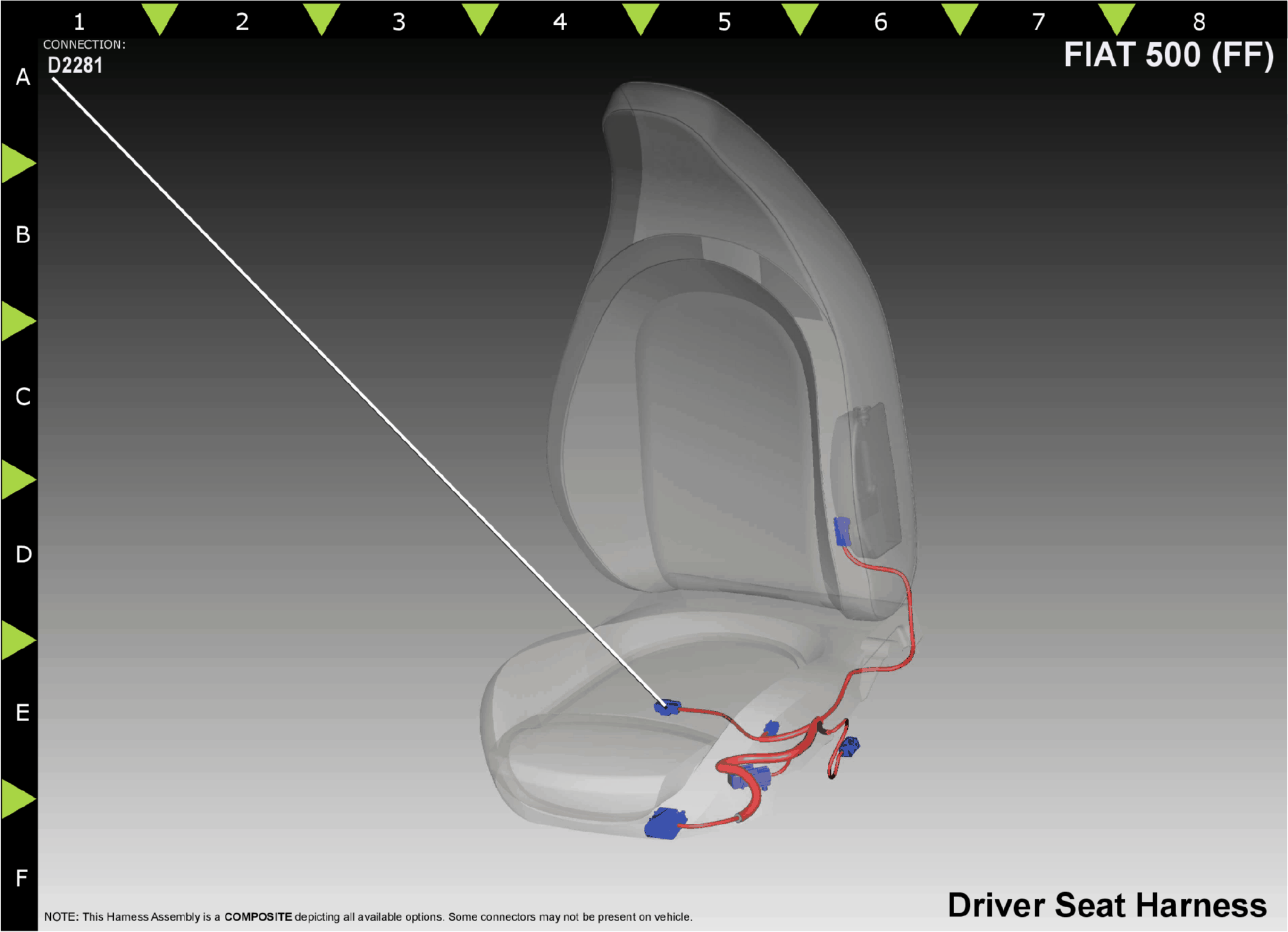

Fig 2: Switch-Seat Belt Buckle-Driver Connector Location View
GCWD1187789Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R57 LG 20 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
2 Z927 LG 20 GROUND N/A
