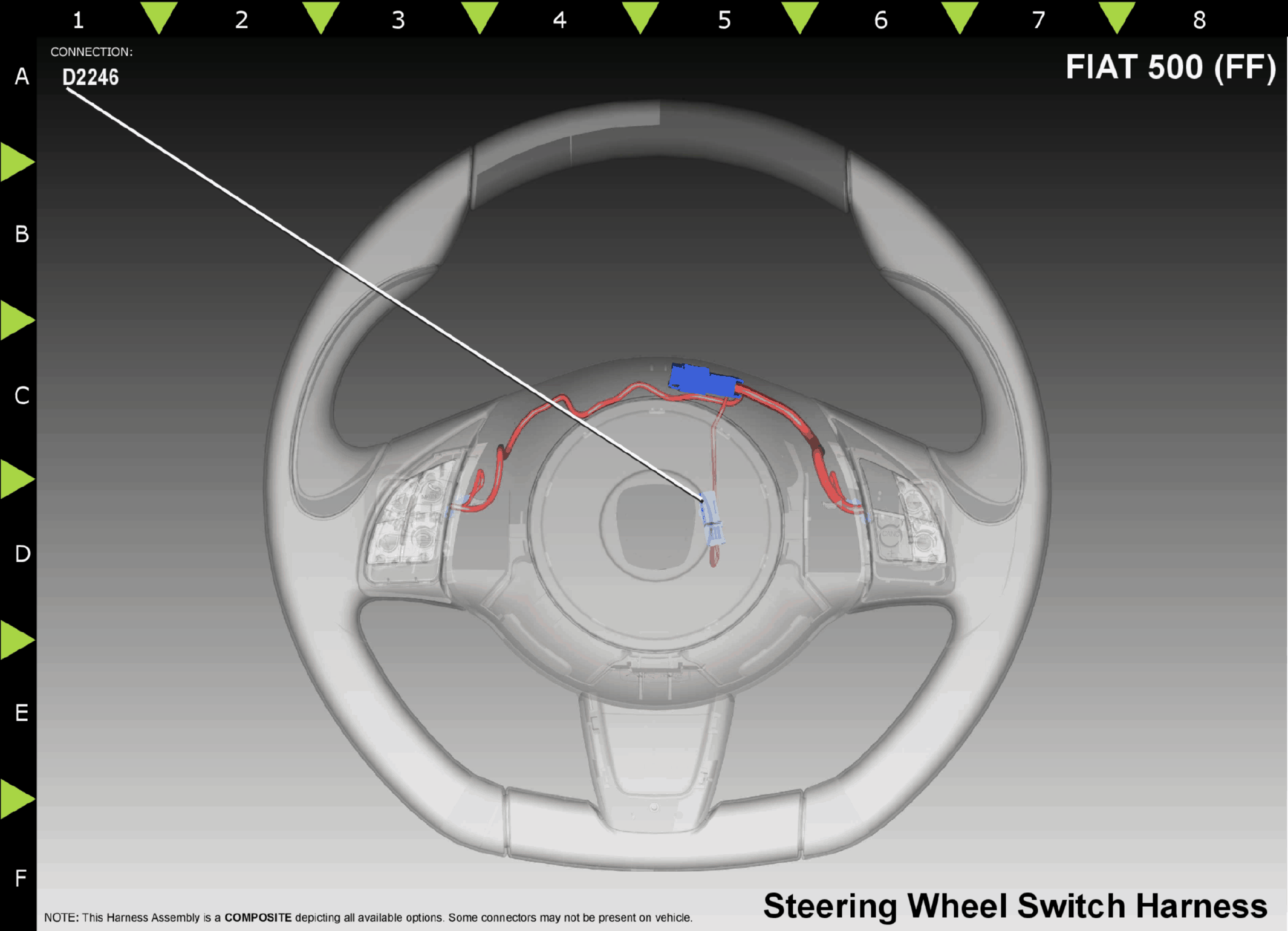

Connector End Views & Electrical Component Locations (3 Of 3): Switch-Horn
Harness-Family: Steering_Wheel
Color: WHITE
Gender: MALE
Part Number: 284820-1
Part Description: Not Available
Connector No: D2246
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 2
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | X21 | OR | 22 | FUSED HORN CONTROL OUTPUT | BASE |
| 2 | Z10 | DB | 22 | GROUND | BASE |
