Solenoid-Variable Camshaft Timing

Harness-Family: Engine_8V

Color: BLACK

Gender: FEMALE

Part Number: 1/07690/97

Part Description: Not Available

Connector No: D2474

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Solenoid-Variable Camshaft Timing Connector End View
GCWD1085289Courtesy of CHRYSLER

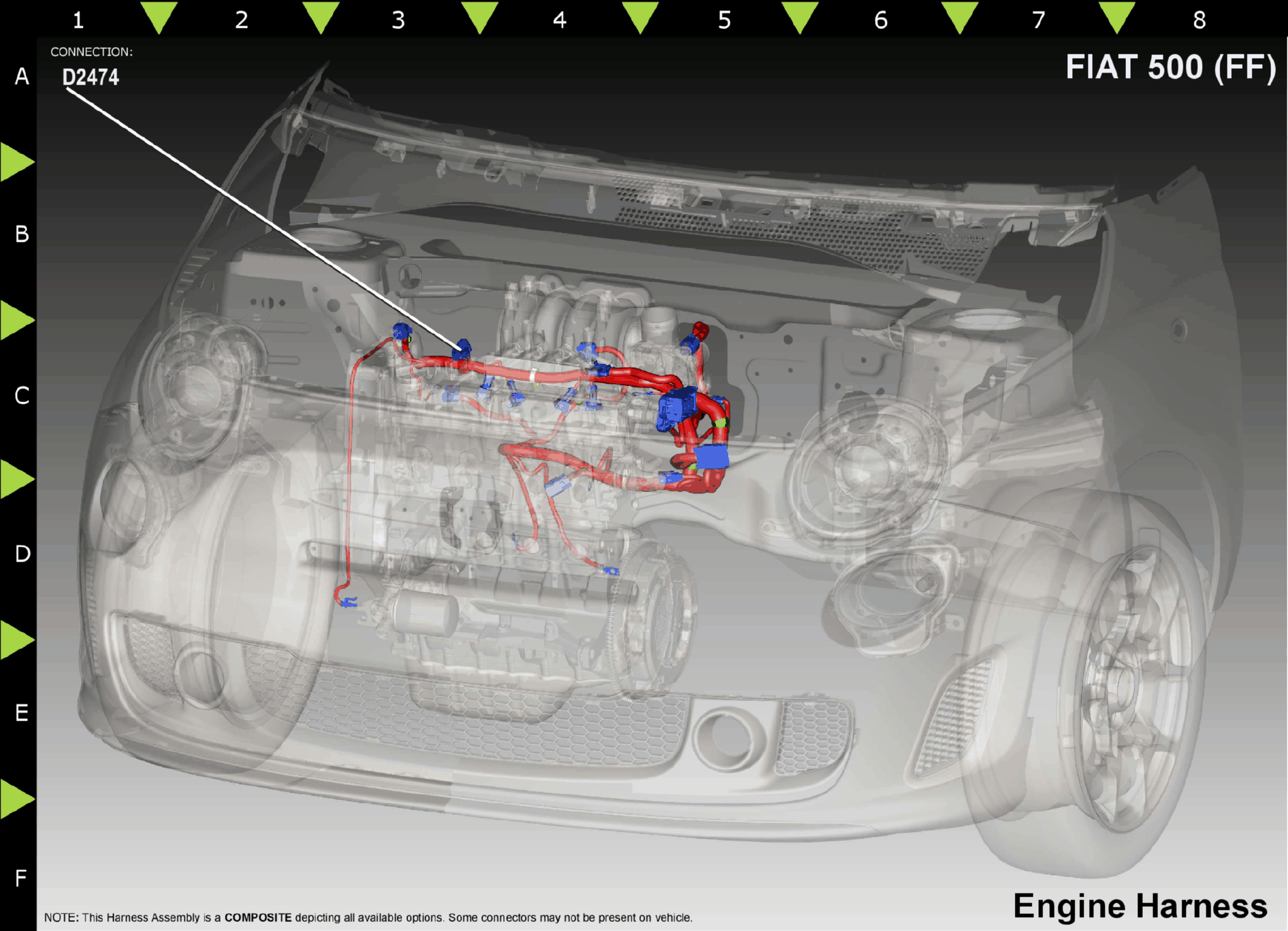

Fig 2: Solenoid-Variable Camshaft Timing Connector Location View
GCWD1187784Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F343 BR 14 FUSED ASD RELAY OUTPUT N/A
2 K76 YL 18 VVT INTAKE CONTROL N/A
