Connector End Views & Electrical Component Locations (2 Of 3): S105

Harness-Family: Engine_8V

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S105

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: S105 Connector End View

Courtesy of CHRYSLER

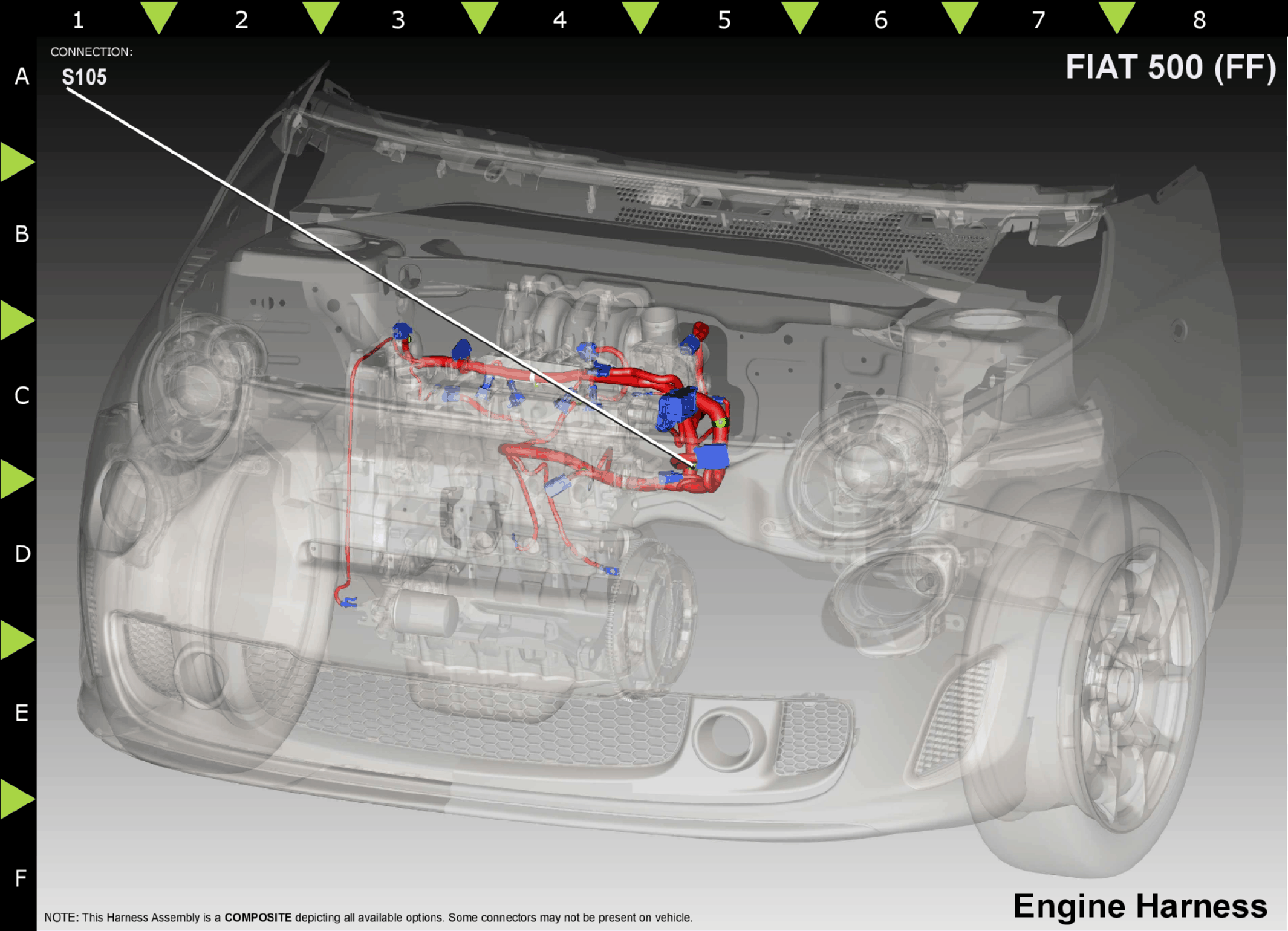

Fig 2: S105 Connector Location View

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
2	F343	VT	12	FUSED ASD RELAY OUTPUT	N/A
3	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
4	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
5	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
6	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
7	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
8	F343	BR	14	FUSED ASD RELAY OUTPUT	N/A
