Relay-Heated Seat-Passenger
Harness-Family: Seat_Pass
Color: BLACK
Gender: MALE
Part Number: 3457-01-001
Part Description: Not Available

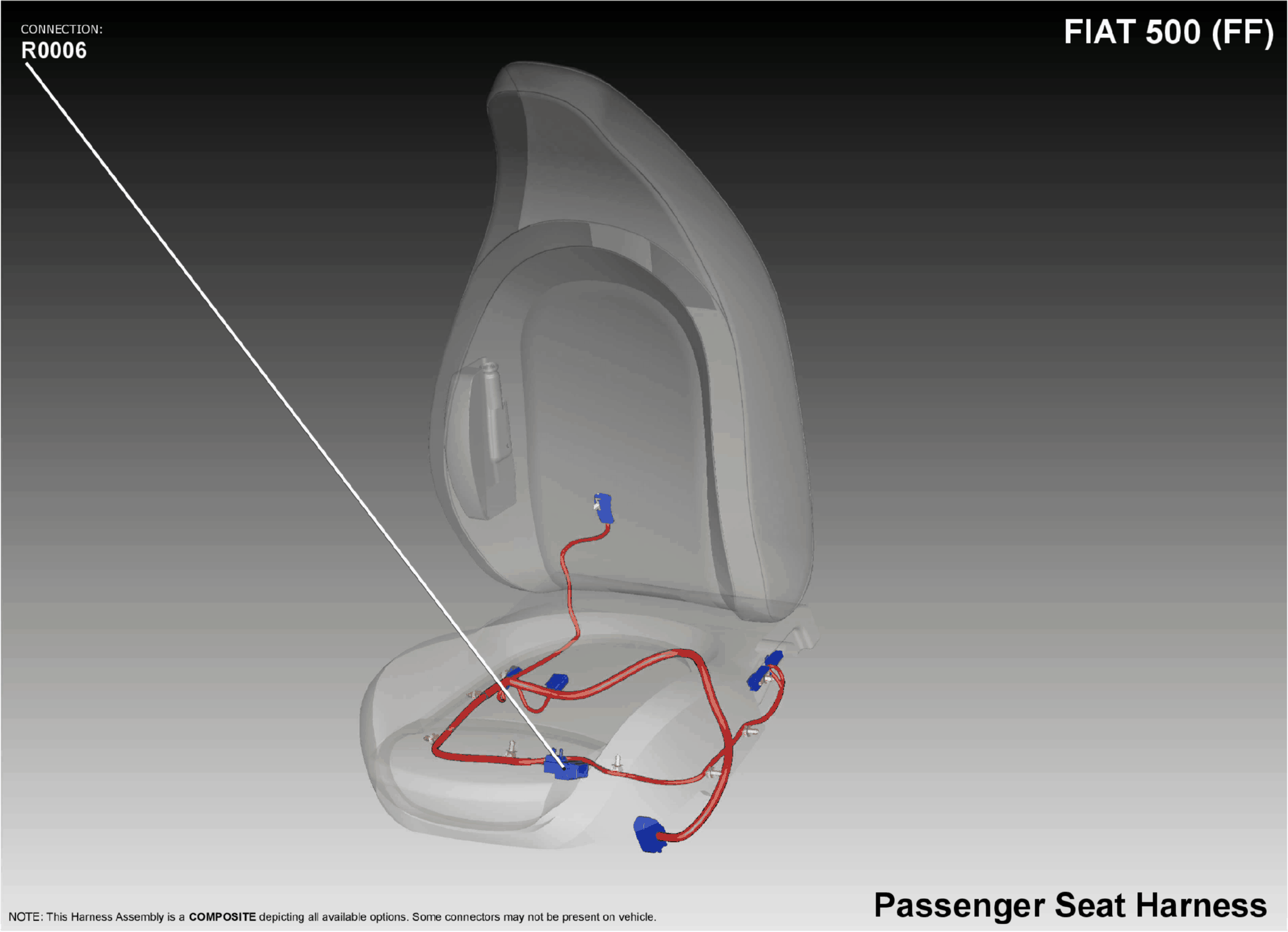

Connector No: R0006
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | P134 | LB | 20 | PASSENGER HEATED SEAT RELAY CONTROL | N/A |
| 3 | F98 | VT | 20 | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) | N/A |
| 4 | Z941 | RD | 16 | GROUND | N/A |
| 5 | Z941 | BK | 22 | GROUND | N/A |
