Relay-A/C Clutch

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: R0819

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Relay-A/C Clutch Connector End View

GCWD1006402

Courtesy of CHRYSLER

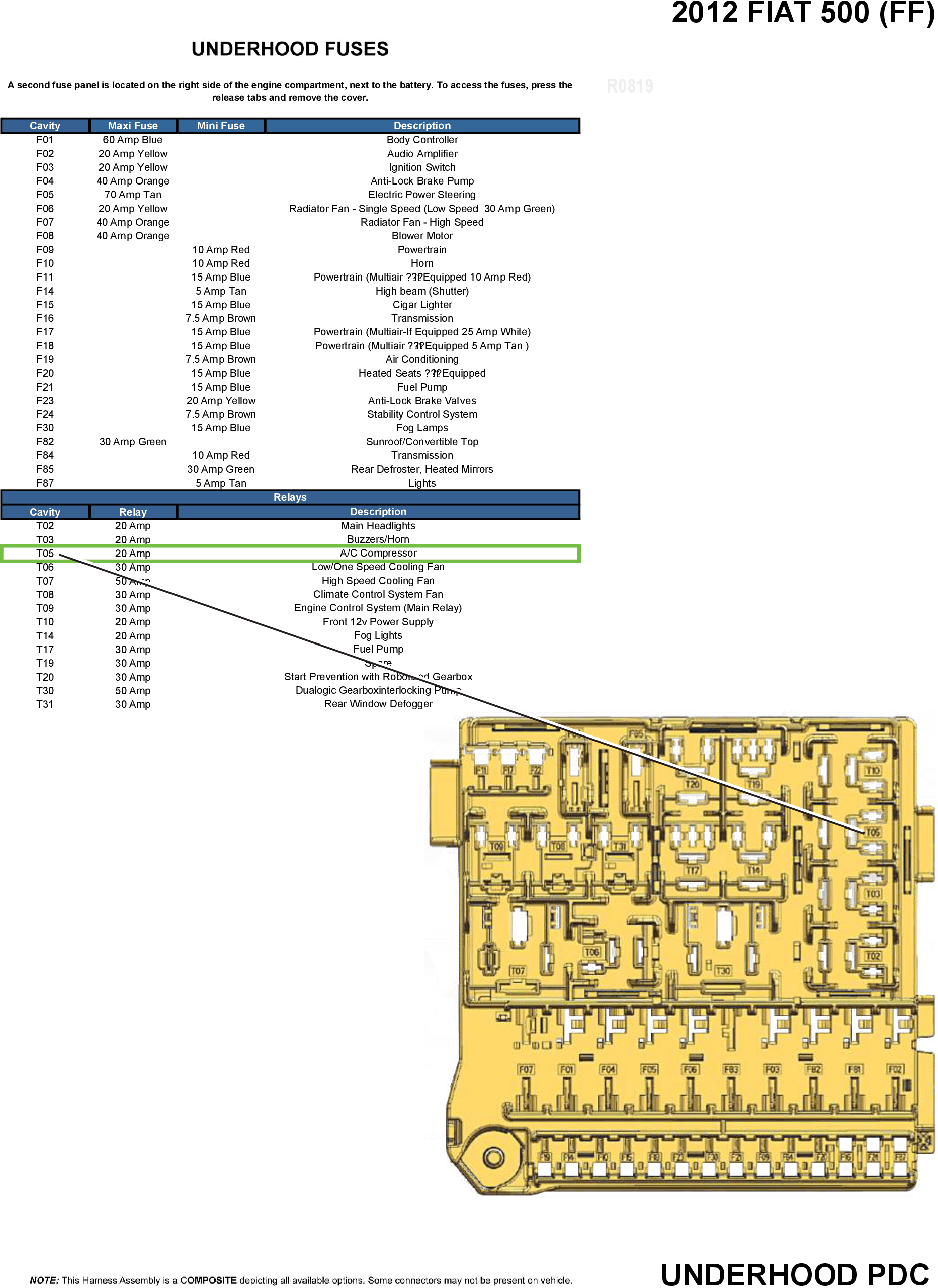

Fig 2: Relay-A/C Clutch Connector Location View

GCWD1187437

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	C3	INTERNAL	NA	A/C CLUTCH CONTROL OUTPUT	N/A
85	C281	INTERNAL	NA	A/C CLUTCH RELAY CONTROL	N/A
86	F307	INTERNAL	NA	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
87	C13	INTERNAL	NA	A/C CLUTCH CONTROL	N/A
