Connector End Views & Electrical Component Locations (2 Of 3): Port-Media

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: FJH07052

Part Description: Not Available

Connector No: D2470A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

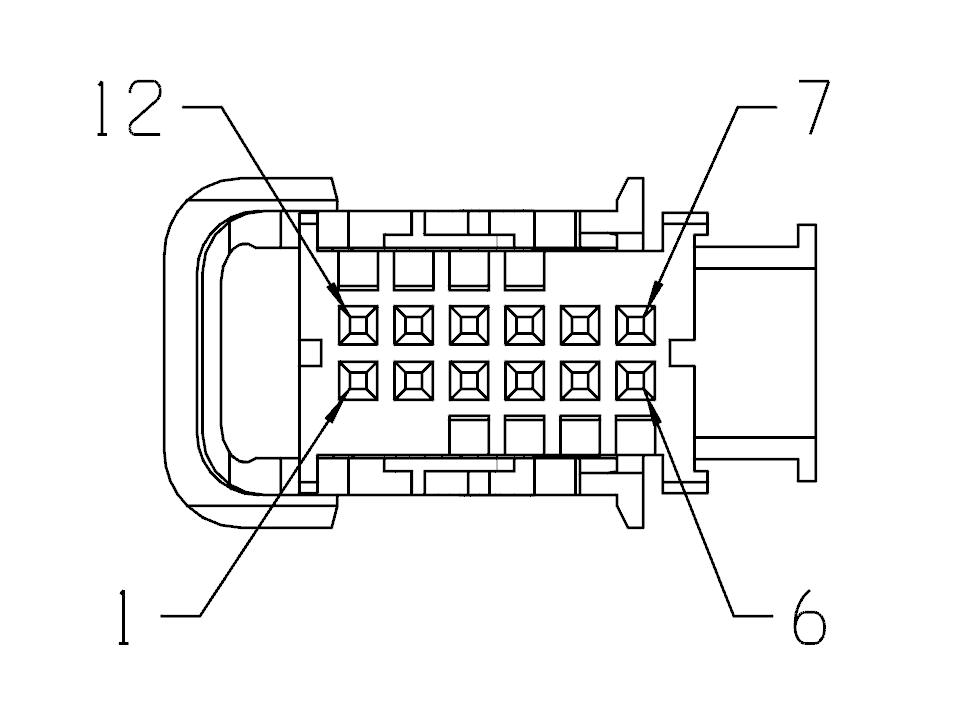

Fig 1: Port-Media Connector End View

Courtesy of CHRYSLER

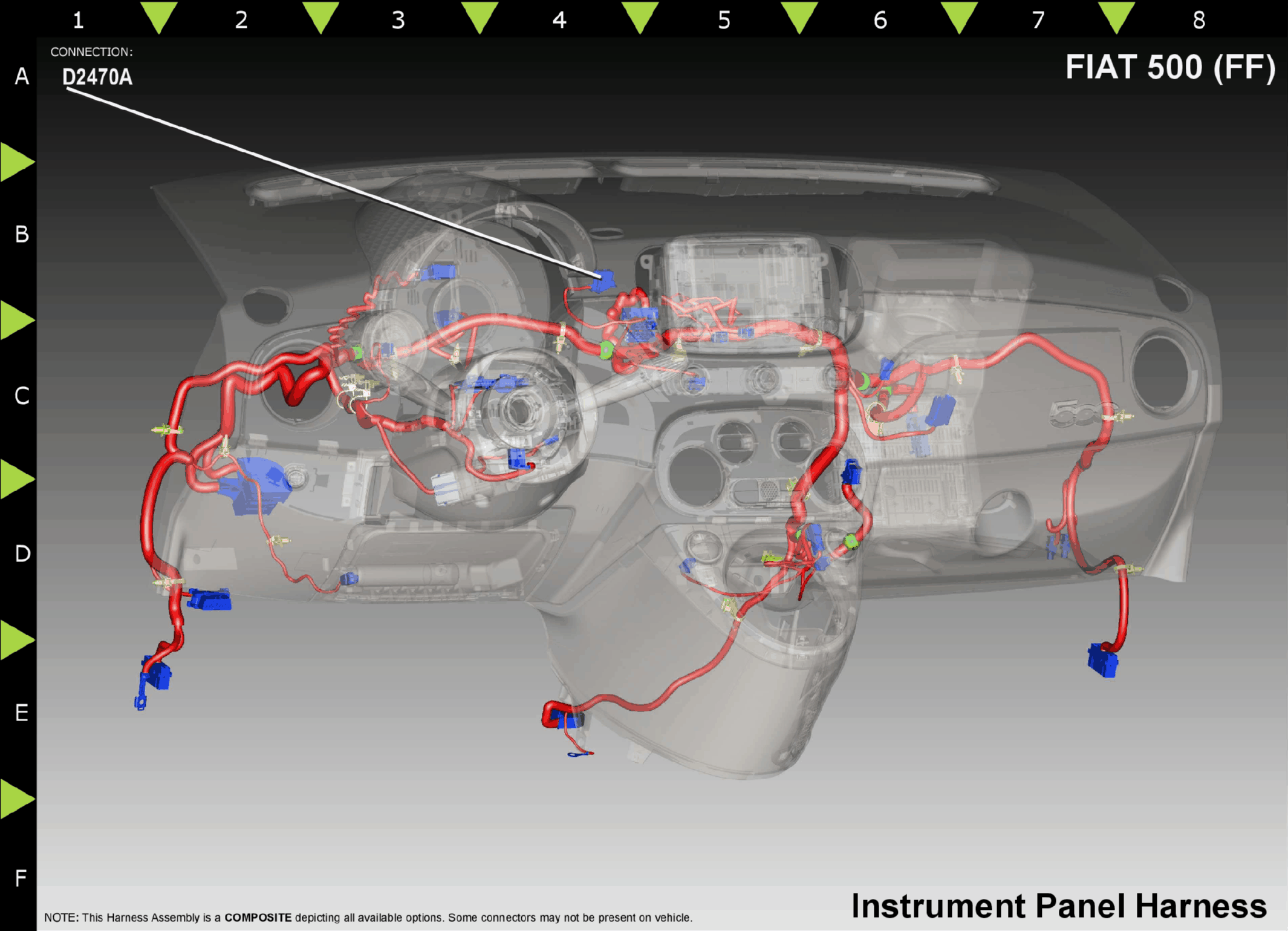

Fig 2: Port-Media Connector Location View

Courtesy of CHRYSLER
