Motor-Power Top
Harness-Family: Power_Top
Color: BLACK
Gender: MALE
Part Number: 98825-1061
Part Description: Not Available

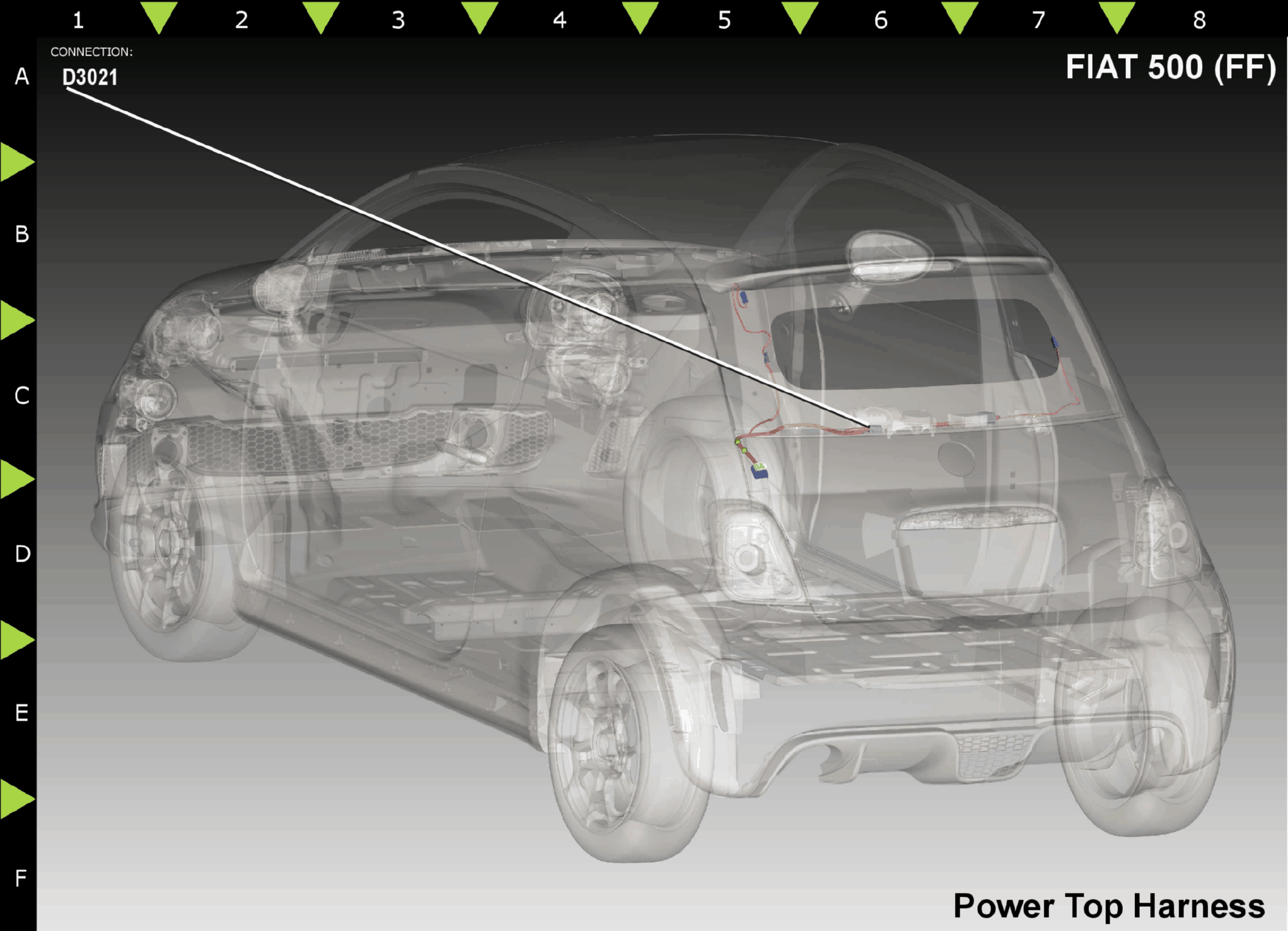

Connector No: D3021
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | Q987 | VT | 20 | POWER TOP MOTOR SOLENOID SIGNAL | N/A |
| 2 | Z916 | GY | 20 | GROUND | N/A |
| 3 | Q985 | DB | 10 | POWER TOP EXTENDED DRIVER | N/A |
| 4 | Q986 | DG | 10 | POWER TOP RETRACTED DRIVER | N/A |
| 5 | Q982 | DB | 20 | TONNEAU EXTENDED LIMIT SWITCH SIGNAL | N/A |
| 6 | Q981 | VT | 20 | TONNEAU RETRACTED LIMIT SWITCH SIGNAL | N/A |
