Motor-Fuel Pump

Harness-Family: Body_Front

Color:

Gender: MALE

Part Number: FJE73786

Part Description: Not Available

Connector No: D3014

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

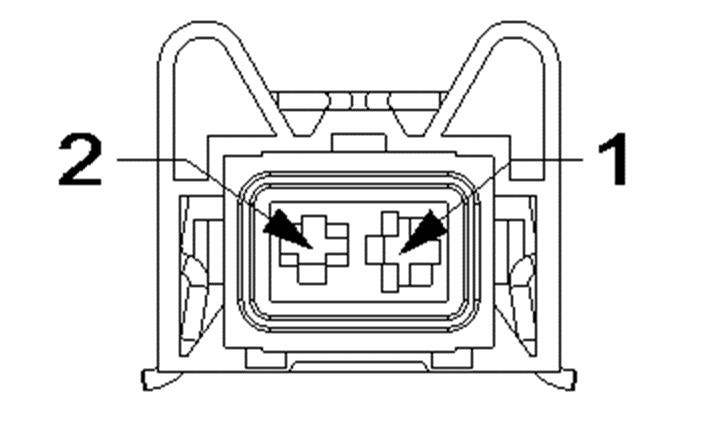

Fig 1: Motor-Fuel Pump Connector End View

GCWD1080884

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z201	BK	16	GROUND	N/A
2	F22	GY	16	FUSED IGNITION SWITCH OUTPUT (RUN-START)	N/A
