Connector End Views & Electrical Component Locations (2 Of 3): Motor-Blower
Harness-Family: HVAC_ATC
Color: BLACK
Gender: FEMALE
Part Number: N085
Part Description: Not Available

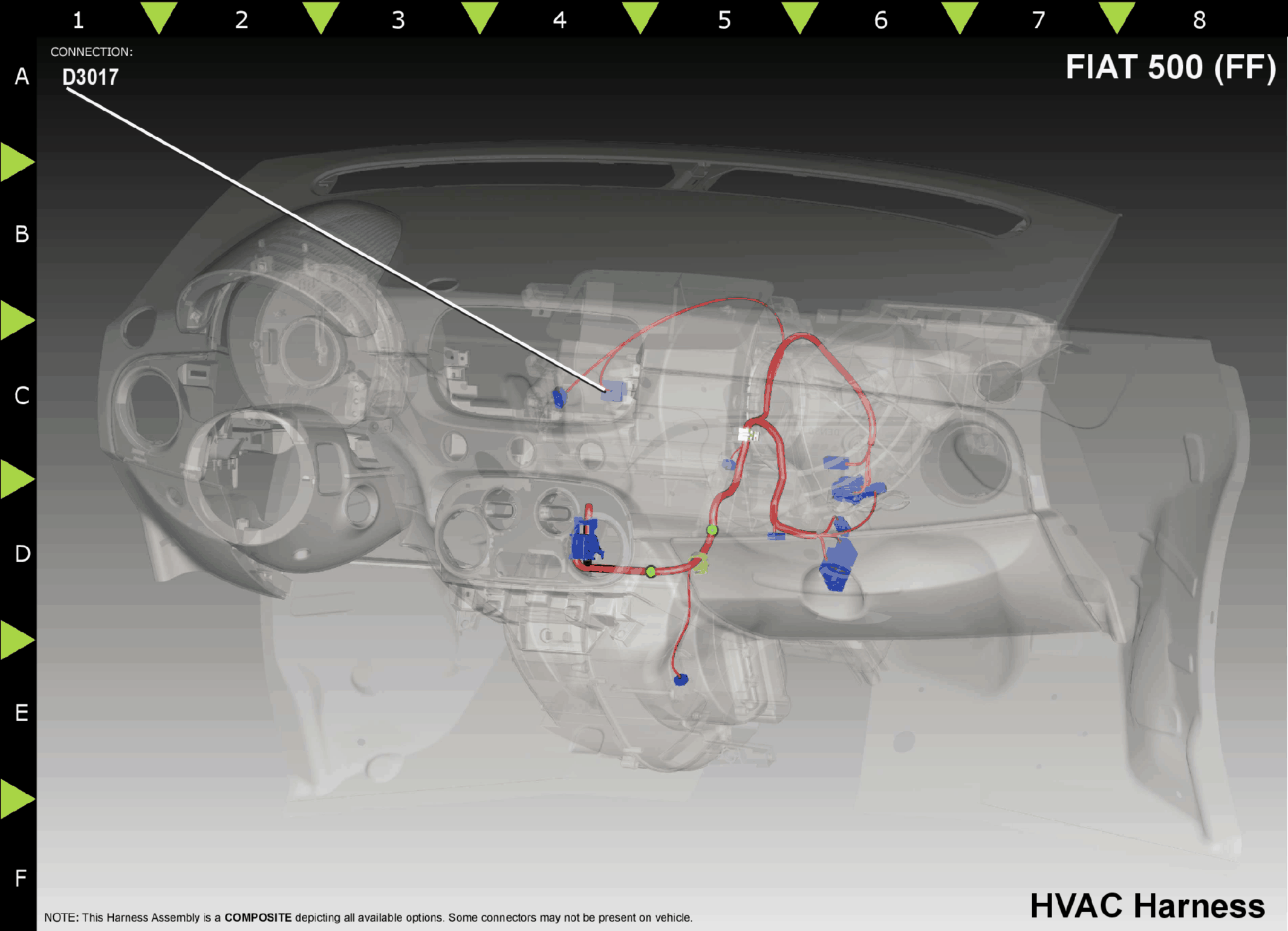

Connector No: D3017
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | Z134 | BK | 10 | GROUND | ATC |
| 1 | C70 | BR | 10 | BLOWER MOTOR HIGH DRIVER | MTC |
| 2 | C7 | RD | 10 | BLOWER MOTOR SUPPLY | ATC |
