Fuse F05 70A

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F0005

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse F05 70a Connector End View

GCWD1006305

Courtesy of CHRYSLER

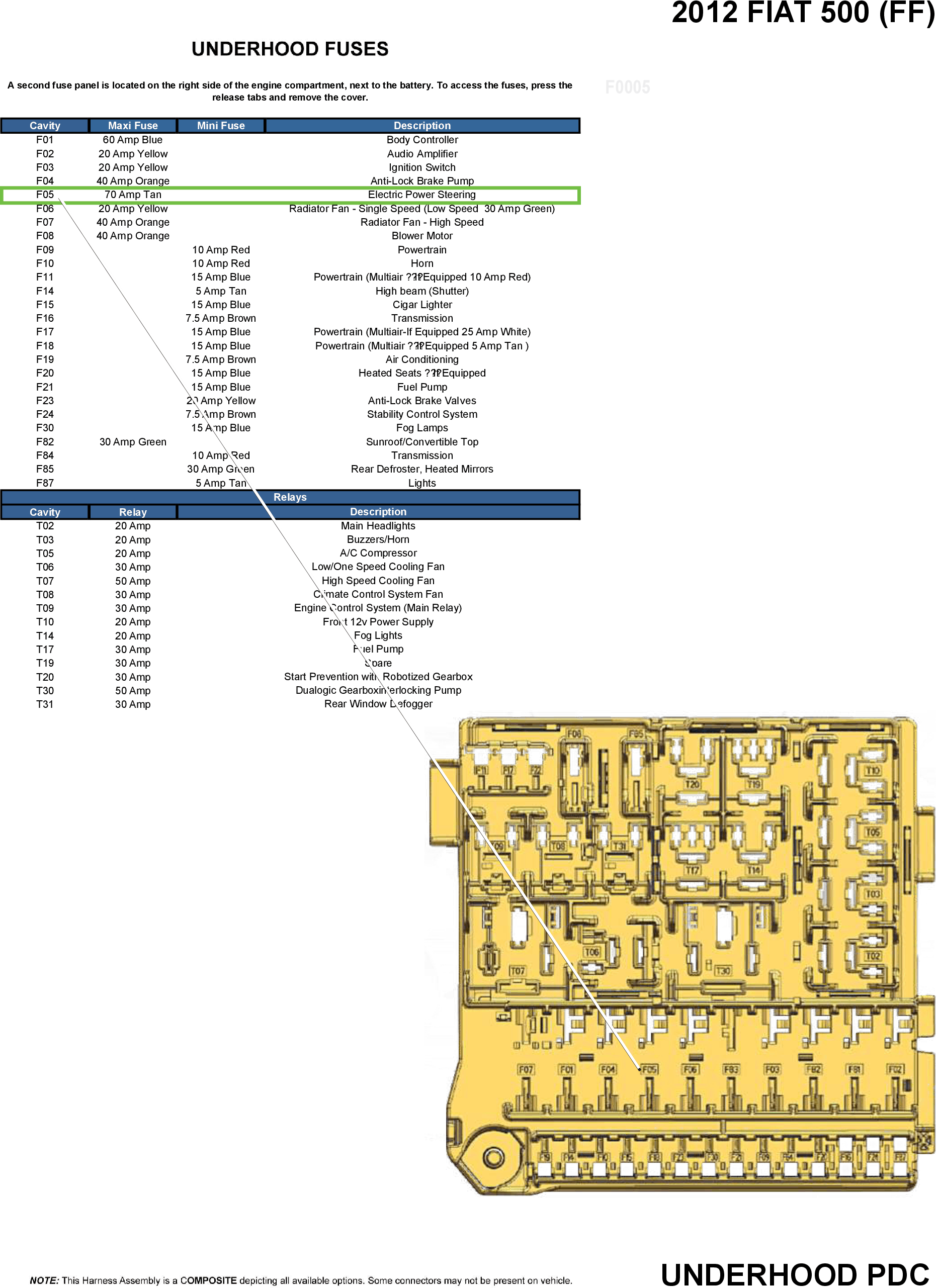

Fig 2: Fuse F05 70a Connector Location View

GCWD1187491

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
2	A200	INTERNAL	NA	FUSED B(+)	N/A
