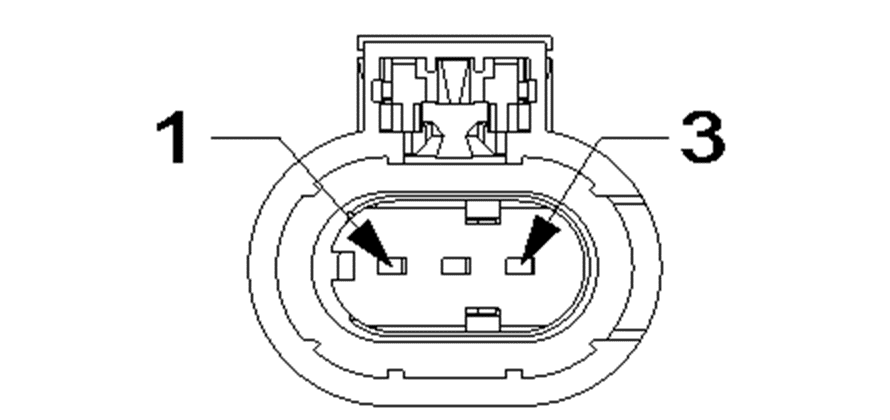

Coil-Ignition 2
Harness-Family: Engine_16 V
Color: BLACK
Gender: FEMALE
Part Number: AGV89528
Part Description: Not Available
Connector No: D5205
Option: 16V
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K17 | YL | 18 | COIL CONTROL 2 | N/A |
| 1 | Z907 | BK | 18 | GROUND | N/A |
| 2 | Z907 | BK | 18 | GROUND | N/A |
| 2 | F343 | DB | 16 | FUSED ASD RELAY OUTPUT | N/A |
| 3 | F343 | DB | 18 | FUSED ASD RELAY OUTPUT | N/A |
| 3 | K17 | YL | 16 | COIL CONTROL 2 | N/A |
