Blunt Cut 3

Harness-Family: Engine_8V

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: L8003

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Blunt Cut 3 Connector End View

GCWD1006457

Courtesy of CHRYSLER

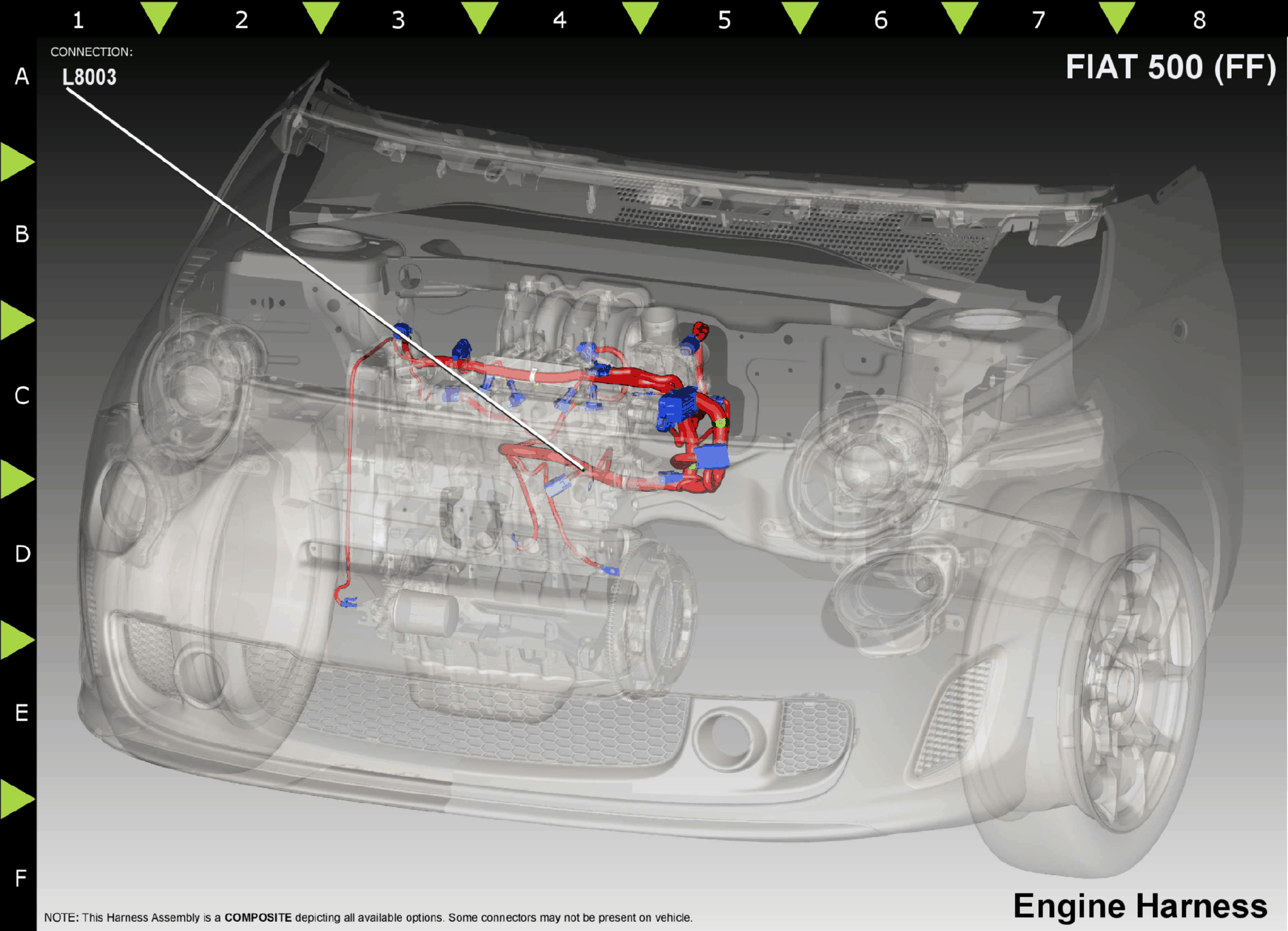

Fig 2: Blunt Cut 3 Connector Location View

GCWD1187477

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z753	BK	20	CRANKSHAFT POSITION SENSOR SHIELD	N/A
