Battery (-)

Harness-Family: Battery_Negative

Color: NA

Gender: FEMALE

Part Number: CBT100-018

Part Description: Not Available

Connector No: D7400B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Battery (-) Connector End View

GCWD1087495

Courtesy of CHRYSLER

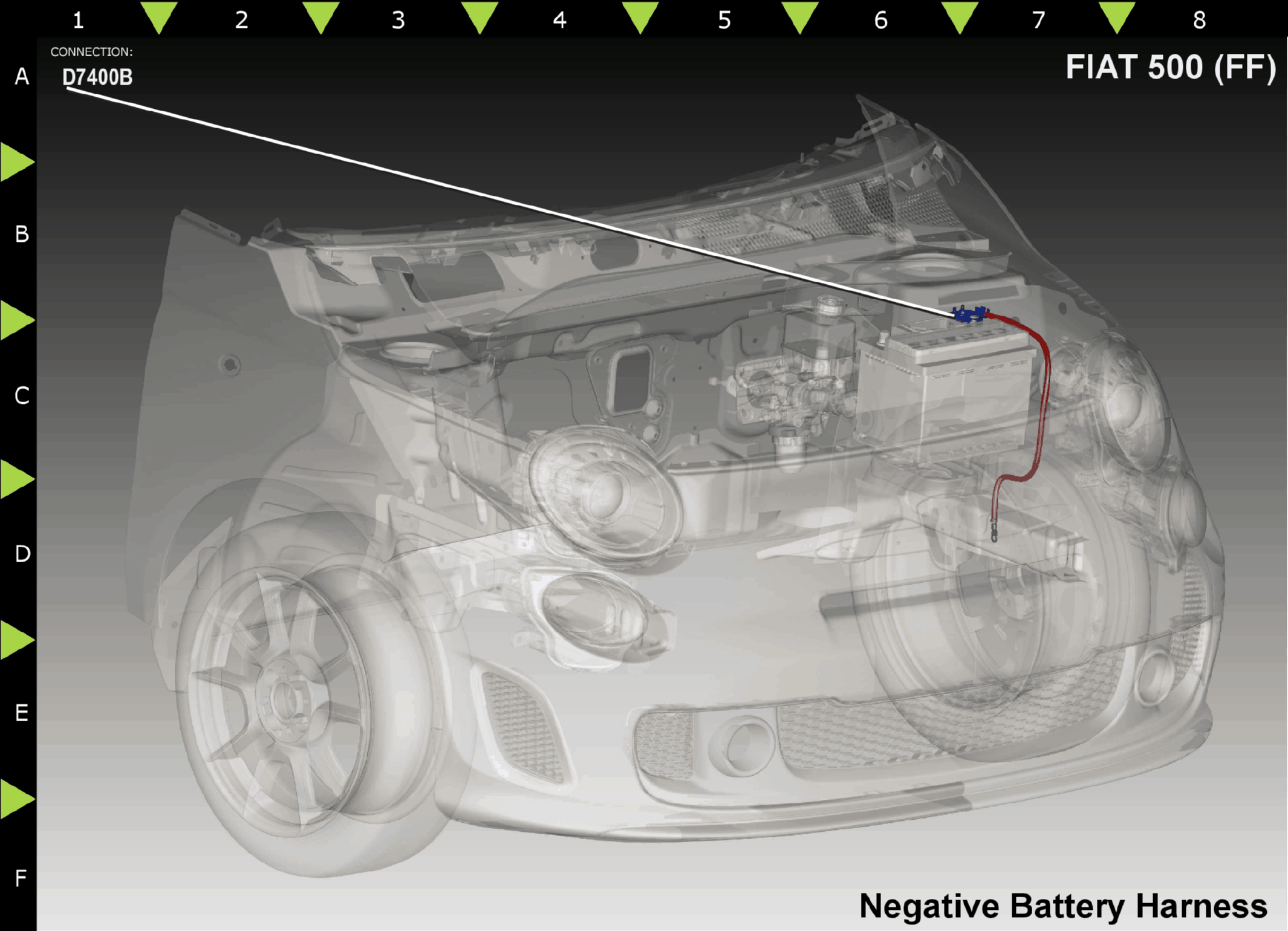

Fig 2: Battery (-) Connector Location View

GCWD1187816

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z1	BK	4	GROUND	N/A
1	Z0	BK	4	GROUND	N/A
