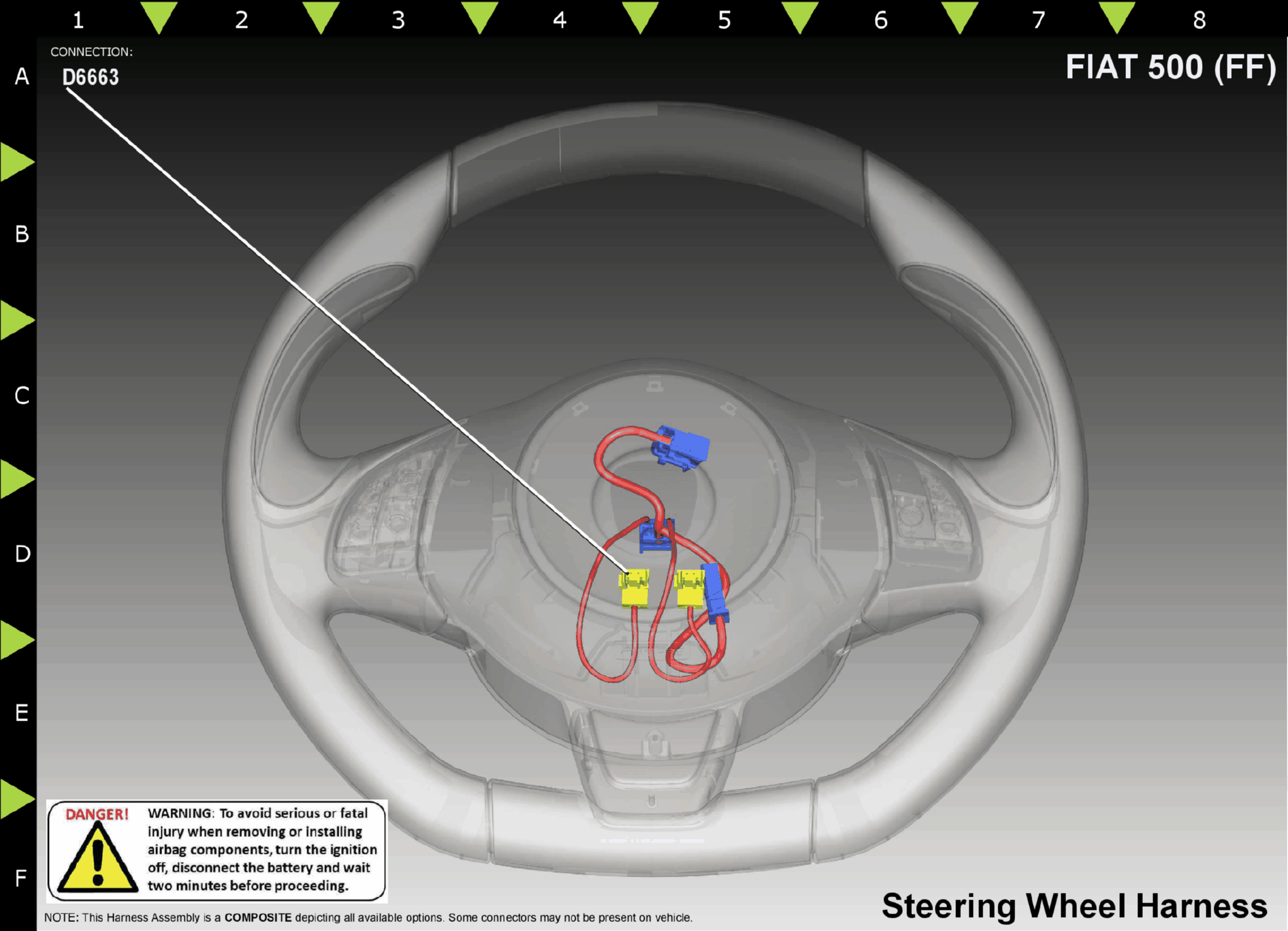

Airbag-Driver Squib 1
Harness-Family: Steering_Wheel
Color: ~~
Gender: MALE
Part Number: ~~
Part Description: Not Available
Connector No: D6663
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | R45 | DB | 20 | DRIVER SQUIB 1 LINE 1 | N/A |
| 2 | R43 | WT | 20 | DRIVER SQUIB 1 LINE 2 | N/A |
