Actuator- RECIRCULATION Door
Harness-Family: HVAC_ATC
Color: BLACK
Gender: FEMALE
Part Number: N082
Part Description: Not Available

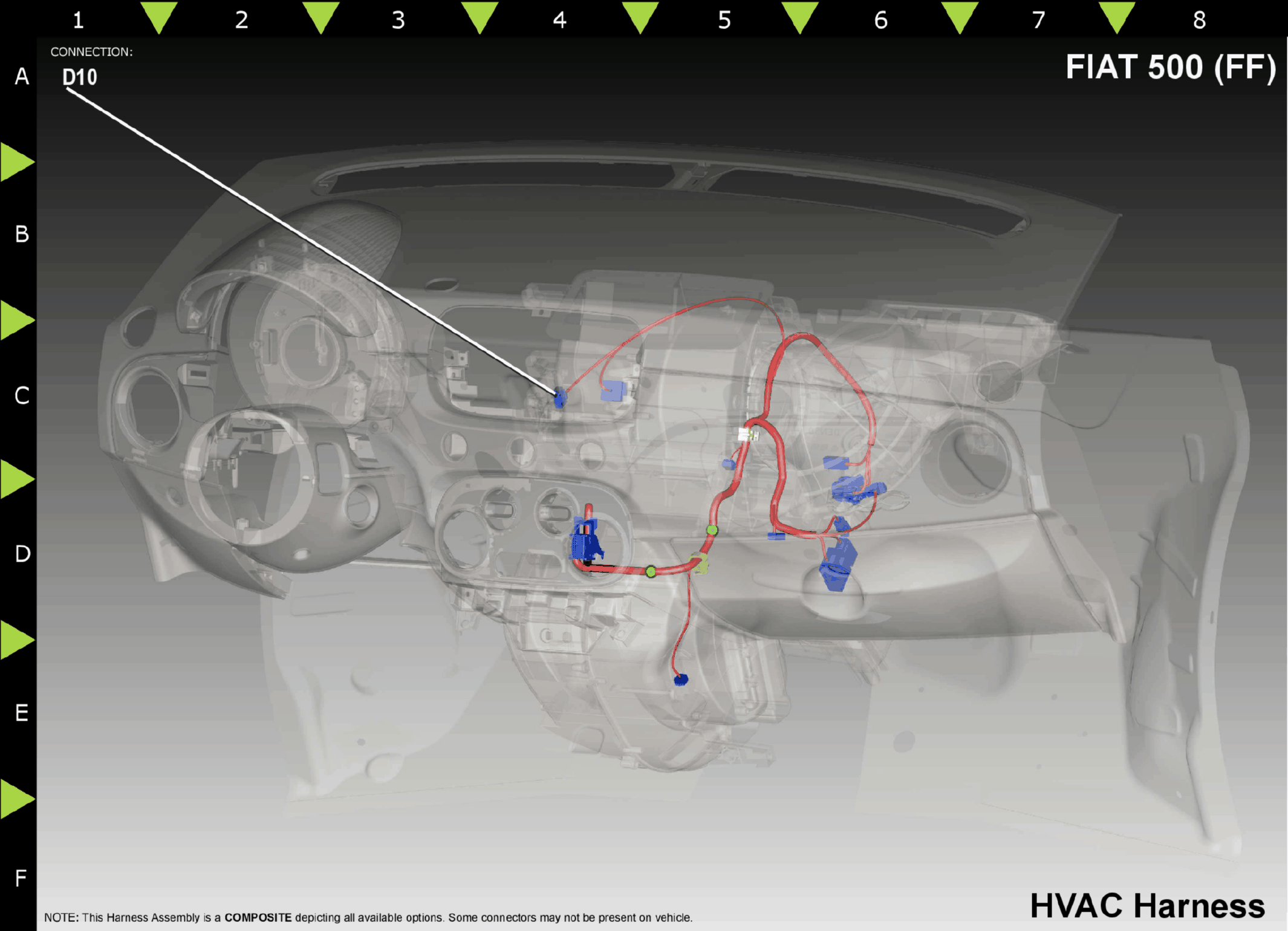

Connector No: D10
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 5 | C268 | BR | 22 | RECIRCULATION DOOR DRIVER | ATC |
| 6 | C68 | GY | 22 | RECIRCULATION DOOR COMMON DRIVER | ATC |
