Repair Procedure:

Fig 1: Rear Window Sunshade

Courtesy of CHRYSLER GROUP, LLC

NOTE:

NOTE: Sunshade is held in place by rear seatbacks. No fastener removal is required.

Remove the rear window sunshade (1) if equipped. Push down the rear seat release buttons, located at the outboard top of the seatbacks and move the seatbacks to their folded-down position in order to remove the rear window sunshade.

Fig 2: Horseshoe Bezel, Rear Window Package Tray & Three Retaining Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the horseshoe bezel (1) from the rear window package tray (3) by removing the three retaining fasteners (2).

Fig 3: Three Retaining Clips & Rear Window Package Tray
Courtesy of CHRYSLER GROUP, LLC
Remove the three retaining clips (2) in order to remove the rear window package tray (1).

Fig 4: Rear Headliner Sail Panels & Rear Upper Headliner
Courtesy of CHRYSLER GROUP, LLC
Pull back the rear headliner sail panels (1) in order to access the rear upper headliner (2).

Fig 5: Upper Headliner
Courtesy of CHRYSLER GROUP, LLC
Remove the upper headliner (1) from the rear window upper retaining channel.

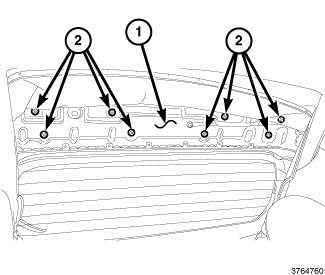

Fig 6: Eight Retaining Fasteners & Spoiler Reinforcement Header Panel
Courtesy of CHRYSLER GROUP, LLC
Loosen the eight retaining fasteners (2) securing the spoiler reinforcement header panel (1).

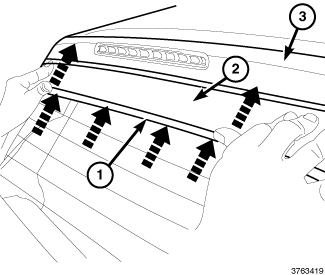

Fig 7: Exterior Soft Top Fabric, Rear Window Seal & Rear Spoiler
Courtesy of CHRYSLER GROUP, LLC
Apply firm pressure to the exterior soft top fabric (2) at the top edge of the rear window seal (1), in an upward direction toward rear spoiler (3).

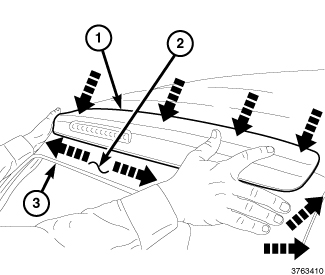

Fig 8: Rear Window, Spoiler & Time Grasping The Spoiler
Courtesy of CHRYSLER GROUP, LLC
Apply firm upward pressure to smooth out any soft top fabric bubbling above rear window (2) by pressing the fabric flat and pushing out away from the center and up toward the sides of the spoiler (3), while at the same time grasping the spoiler (1) with the thumb and index finger and pulling down with slight pressure against the spoiler.

Fig 9: Eight Retaining Fasteners & Spoiler Reinforcement Header Panel
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Help of an assistant is required for the following step.
Have an assistant retighten the eight retaining fasteners (2) securing the spoiler reinforcement header panel (1).
Inspect the rear window (exterior) soft top seal for looseness at sides of rear window. Measure distance from rear window to soft top fabric which should be a maximum distance of 14 mm (9/16 in).
Water leak test the vehicle to verify the repair, primarily around the exterior sides of the rear window. Hose test should be a minimum of 5 minutes.
Reverse Step #5 through Step #1 for reassembly.
