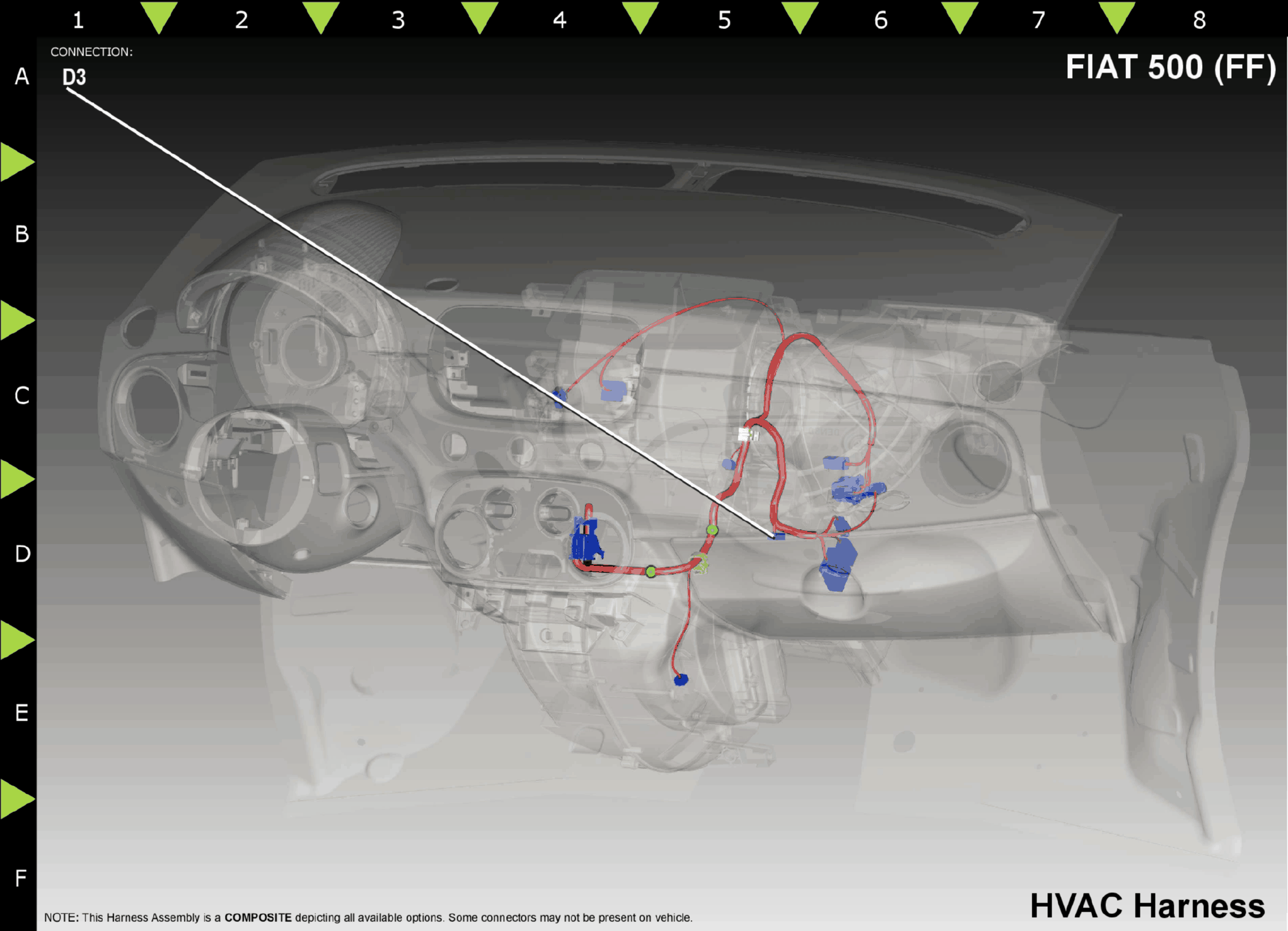

Actuator-HVAC Blend Door
Harness-Family: HVAC_ATC
Color: BLACK
Gender: FEMALE
Part Number: N081
Part Description: Not Available
Connector No: D3
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | C121 | BK | 22 | SENSOR GROUND | N/A |
| 2 | C233 | YL | 22 | LEFT BLEND DOOR SIGNAL | N/A |
| 3 | C807 | LG | 22 | COMMON DOOR DRIVER 2 | N/A |
| 5 | C255 | YL | 22 | LEFT BLEND DOOR DRIVER | N/A |
| 6 | C55 | GY | 22 | LEFT BLEND DOOR COMMON DRIVER | N/A |
