Rear Brake Rotor

Fig 1: Wheel Lug Bolts

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before proceeding, refer to CAUTION and WARNING .

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the wheel cover with a soft prying tool.
Remove the wheel mounting bolts (1), then the tire and wheel assembly.

Fig 2: Parking Brake Cable, Flex Hose & Guide Pin Bolts
Courtesy of CHRYSLER GROUP, LLC
While holding the hex fitting on the caliper slides, remove caliper guide pin bolts (1).
Remove caliper from mounting bracket and support with a bungee cord or wire. Do not let it hang from the brake hose.

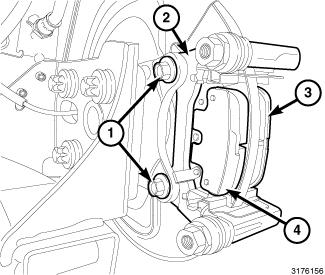

Fig 3: Caliper Adapter Bracket, Mounting Bolts & Brake Pads
Courtesy of CHRYSLER GROUP, LLC
Remove caliper bracket mounting bolts (1) and remove caliper mounting bracket (2).

Fig 4: Wheel Mounting Pins
Courtesy of CHRYSLER GROUP, LLC
Remove retaining studs (1) and slide brake rotor off the hub and bearing.
