Cover, Seat Cushion, Rear: Removal: Removal

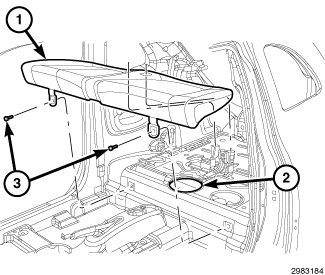

Fig 1: Seat Cushion, Mounting Bolts & Access Cover
GC0152382Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear lower seat mounting bolts (3).
  2. Lift the front of the rear cushion (1) up and remove the cushion from under the seat back.
