Shield, Splash, Rear Wheelhouse: Removal: Removal

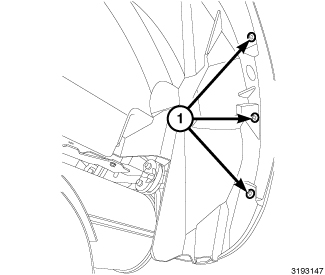

Fig 1: Rear Fascia Fasteners

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle.
2. Remove the rear wheel.
3. Remove the rear splash shield to rear fascia fasteners (1).
   Fig 2: Splash Shield Bolts

   Courtesy of CHRYSLER GROUP, LLC
4. Remove the splash shield to bodyside fasteners (1).
   Fig 3: Splash Shield & Rear Fascia

   Courtesy of CHRYSLER GROUP, LLC
5. Disengage the retaining tab securing the splash shield (1) to the rear fascia (2).
6. Remove the rear splash shield (1) from the vehicle.
