Sunshade, Sunroof: Removal: Removal

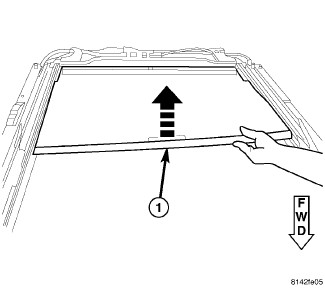

Fig 1: Removing/Installing Drain Channel
GC0082700Courtesy of CHRYSLER GROUP, LLC
  1. Remove the drain trough. See REMOVAL
  2. Push up the front center of the sunshade (1) to pop out the front two feet.

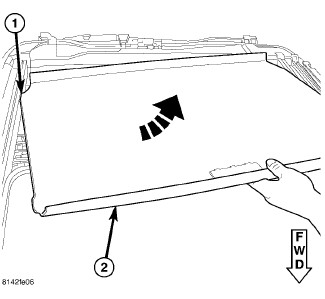

    Fig 2: Removing/Installing Sunshade
    GC0082701Courtesy of CHRYSLER GROUP, LLC
  3. Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
